5.4.16 LCD/TSC Socket J22

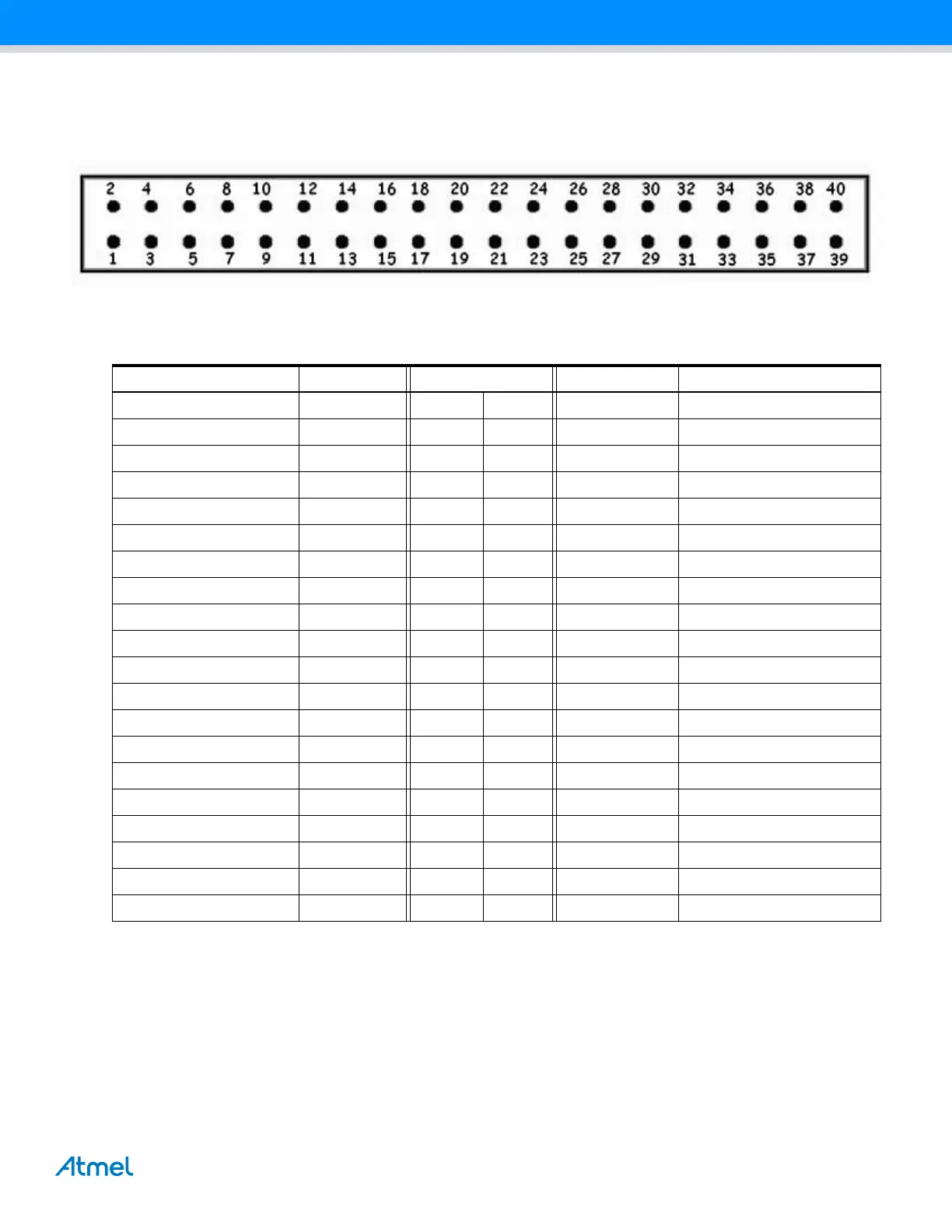

Figure 5-39. LCD/TSC Socket J22
Table 5-17. LCD/TSC Socket J22 HE10 Female LCD/TSC/QT 2*20p
LCD Pin Number LCD
5V 5V_LCD 1 2 GND GND
5V 5V_LCD 3 4 GND GND
LCDDAT16 5 6 LCDDAT17
LCDDAT18 7 8 LCDDAT19
LCDDAT20 9 10 LCDDAT21
LCDDAT22 11 12 LCDDAT23
GND GND 13 14 GND GND
LCDDISP 15 16 LCDPWM
LCDCSYNC 17 18 LCDHSYNC
LCDDEN 19 20 LCDPCK
GND GND 21 22 GND GND
AD0_XP TSC 23 24 TSC AD1_XM
AD2_YP TSC 25 26 TSC AD3_YM
AD4_LR TSC 27 28 ONE_WIRE
GND1 GND 29 30 GND GND
SPI1_MISO 31 32 SPI1_MOSI
SPI1_SPCK 33 34 SPI1_NPCS3
EN_PWRLCD 35 36 LCD_DETECT LCD_DETECT#
PB14 37 38 PB15
GND GND 39 40 GND GND
