SAMA5D3x-EK User Guide [USER GUIDE]
11180B–ATARM–29-Oct-13
5.4.17 ISI Socket J11

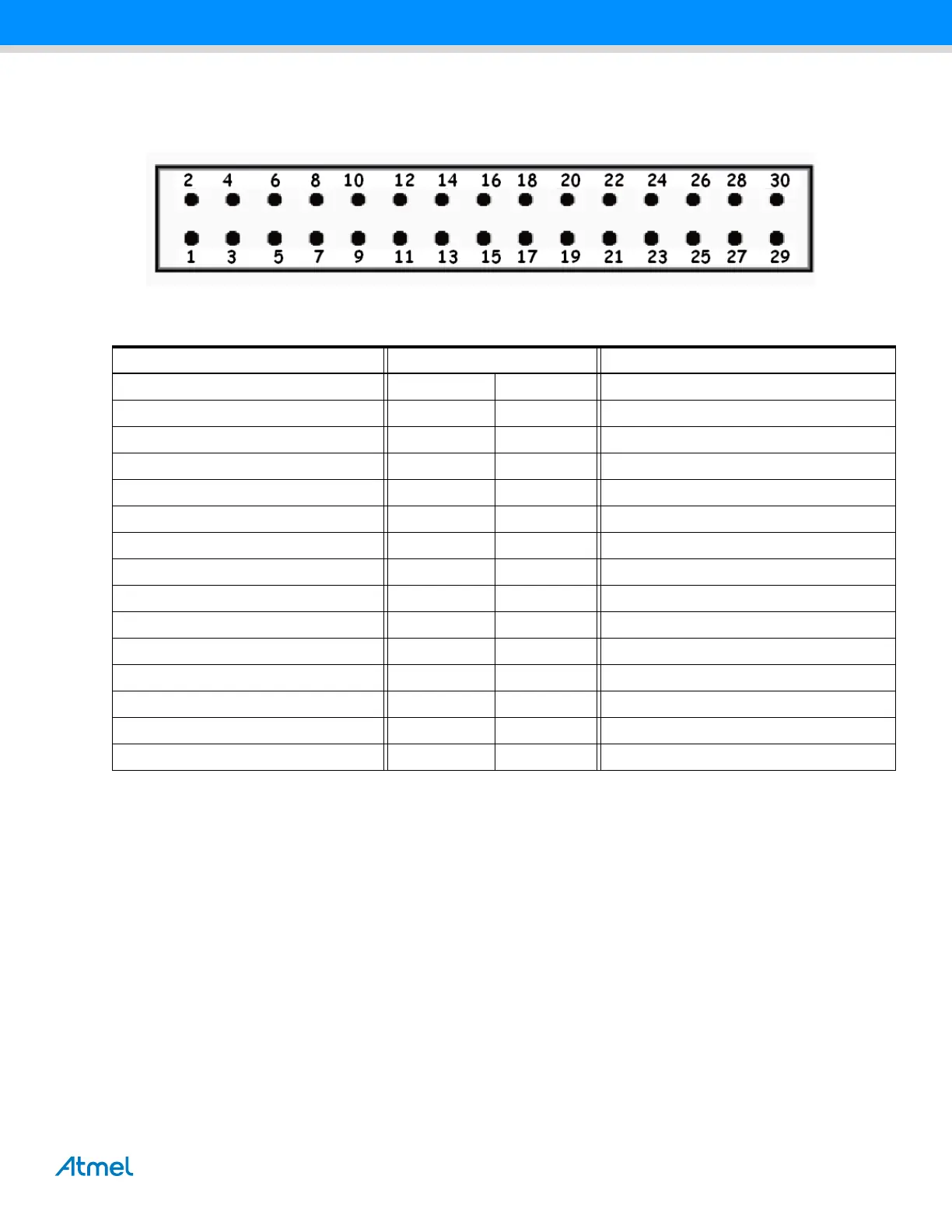

Figure 5-40. ISI Socket J11
Table 5-18. ISI Socket J11 HE10 Female ISI 2*15p
ISI Pin Number ISI
VDDISI 1 2 GND
VDDISI 3 4 GND
ZB_SLPTR 5 6 ZB_RST
TWCK1 7 8 TWD1
GND 9 10 ISI_MCK
GND 11 12 ISI_VSYNC
GND 13 14 ISDI_HSYNC
GND 15 16 ISI_PCK
GND 17 18 ISI_D0
ISI_D1 19 20 ISI_D2
ISI_D3 21 22 ISI_D4
ISI_D5 23 24 ISI_D6
ISI_D7 25 26 ISI_D8
ISI_D9 27 28 ISI_D10
ISI_D11 29 30 GND
