SAMA5D3x-EK User Guide [USER GUIDE]

11180B–ATARM–29-Oct-13

5.4.19 IO Expansion Port J1

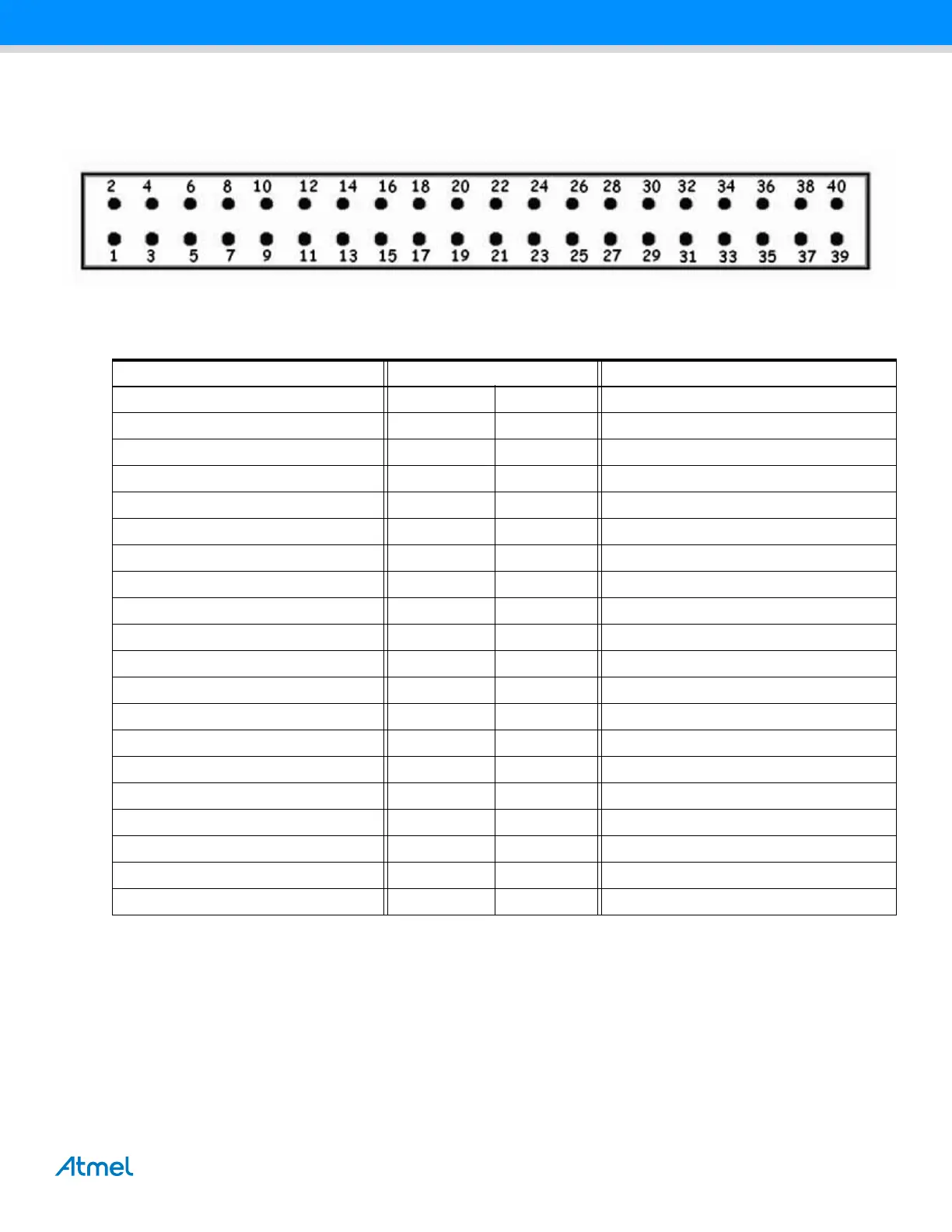

Figure 5-41. IO Expansion Socket J1

Table 5-24. IO Expansion Socket J1 HE10 Male 2*20 Signal Descriptions

Signal Pin Number Signal

VDDIOP0 / 5V 1 2 VDDIOP0 / 5V

GND 3 4 GND

PA0 5 6 PA16

PA1 7 8 PA17

PA2 9 10 PA18

PA3 11 12 PA19

PA4 13 14 PA20

PA5 15 16 PA21

PA6 17 18 PA22

PA7 19 20 PA23

PA8 21 22 PA24

PA9 23 24 PA25

PA10 25 26 PA26

PA11 27 28 PA27

PA12 29 30 PA28

PA13 31 32 PA29

PA14 33 34 PA30

PA15 35 36 PA31

GND 37 38 GND

VDDIOP0 39 40 VDDIOP0
