SAMA5D3x-EK User Guide [USER GUIDE]

11180B–ATARM–29-Oct-13

5.4.20 IO Expansion Port J2

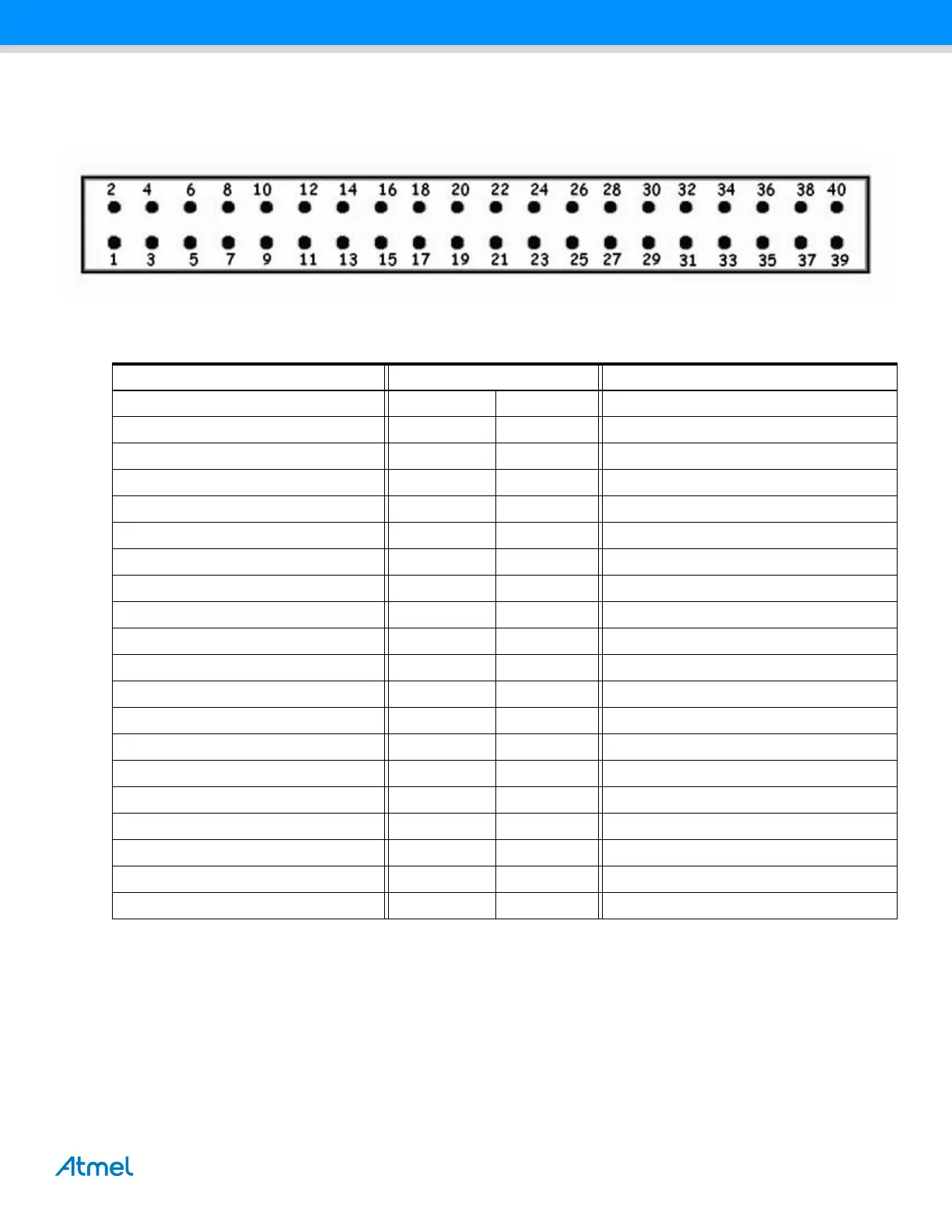

Figure 5-42. IO Expansion Socket J2

Table 5-25. Expansion Socket J2 HE10 Male 2*20 Signal Descriptions

Signal Pin Number Signal

VDDIOP0 / 5V 1 2 VDDIOP0 / 5V

GND 3 4 GND

PC0 5 6 PC16

PC1 7 8 PC17

PC2 9 10 PC18

PC3 11 12 PC19

PC4 13 14 PC20

PC5 15 16 PC21

PC6 17 18 PC22

PC7 19 20 PC23

PC8 21 22 PC24

PC9 23 24 PC25

PC10 25 26 PC26

PC11 27 28 PC27

PC12 29 30 PC28

PC13 31 32 PC29

PC14 33 34 PC30

PC15 35 36 PC31

GND 37 38 GND

VDDIOP0 39 40 VDDIOP0
