5.4.21 IO Expansion Port J3

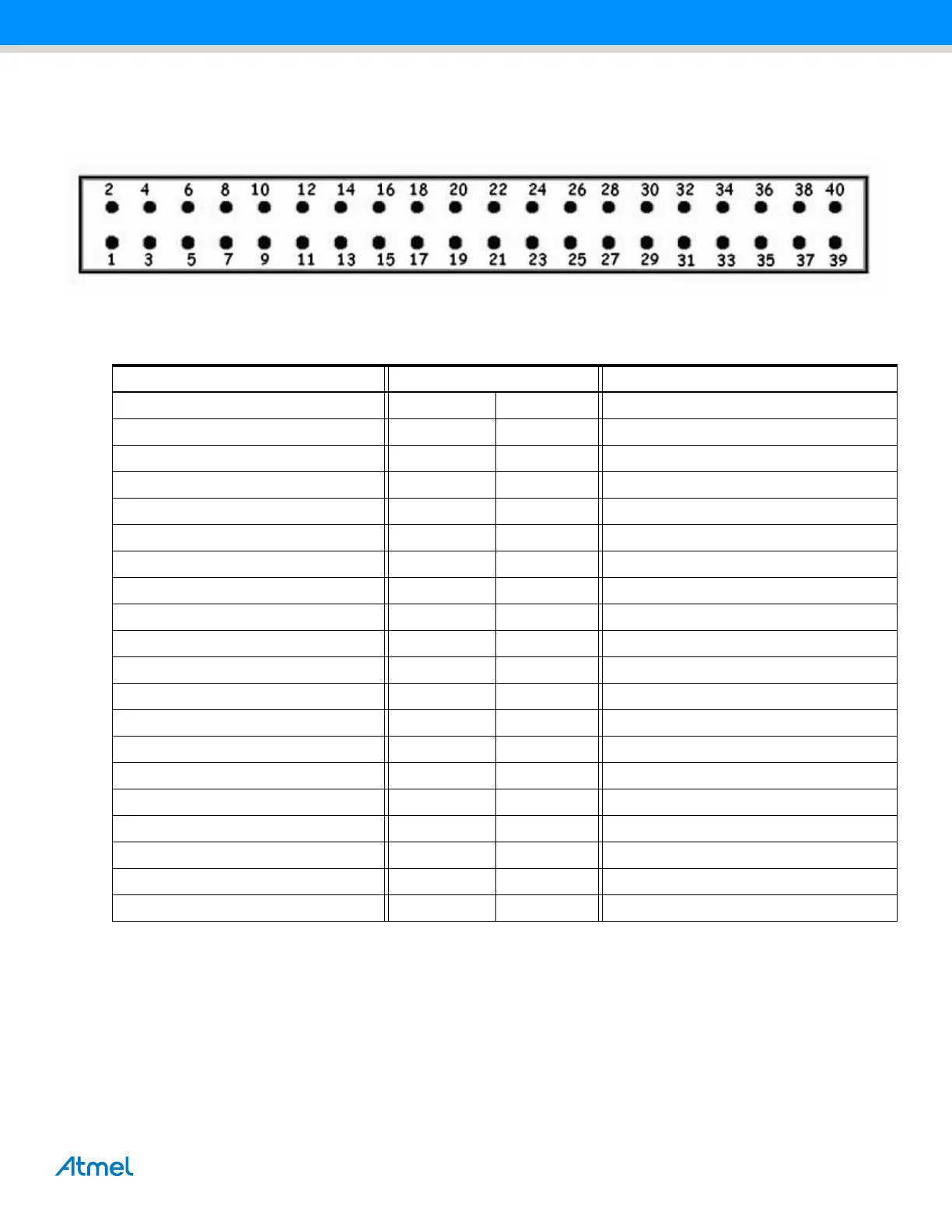

Figure 5-43. IO Expansion Socket J3

Table 5-26. Expansion Socket J3 HE10 Male 2*20 Signal Descriptions

Signal Pin Number Signal

VDDIOP0 / 5V 1 2 VDDIOP0 / 5V

GND 3 4 GND

PB10 5 6 PB31

PB12 7 8 PE23

PB14 9 10 PE24

PB15 11 12 PE25

PB19 13 14 PE26

PB20 15 16 PE29

PB21 17 18 PE30

PB22 19 20 PE31

PB23 21 22 PD10

PB24 23 24 PD11

PB25 25 26 PD12

PB26 27 28 PD13

PB27 29 30 PD14

PB28 31 32 PD15

PB29 33 34 PD19

PB30 35 36 PD31

GND 37 38 GND

VDDIOP0 39 40 VDDIOP0
