SAMA5D3x-EK User Guide [USER GUIDE]
11180B–ATARM–29-Oct-13
5.4.22 SODIMM Card Edge Socket
The SAMA5D3 series-EK implements a SODIMM200 standard connector for to interface to the CM board.
Note this is not an industry standard pinout and is unlikely to be compatible with off-the-shelf SODIMM.

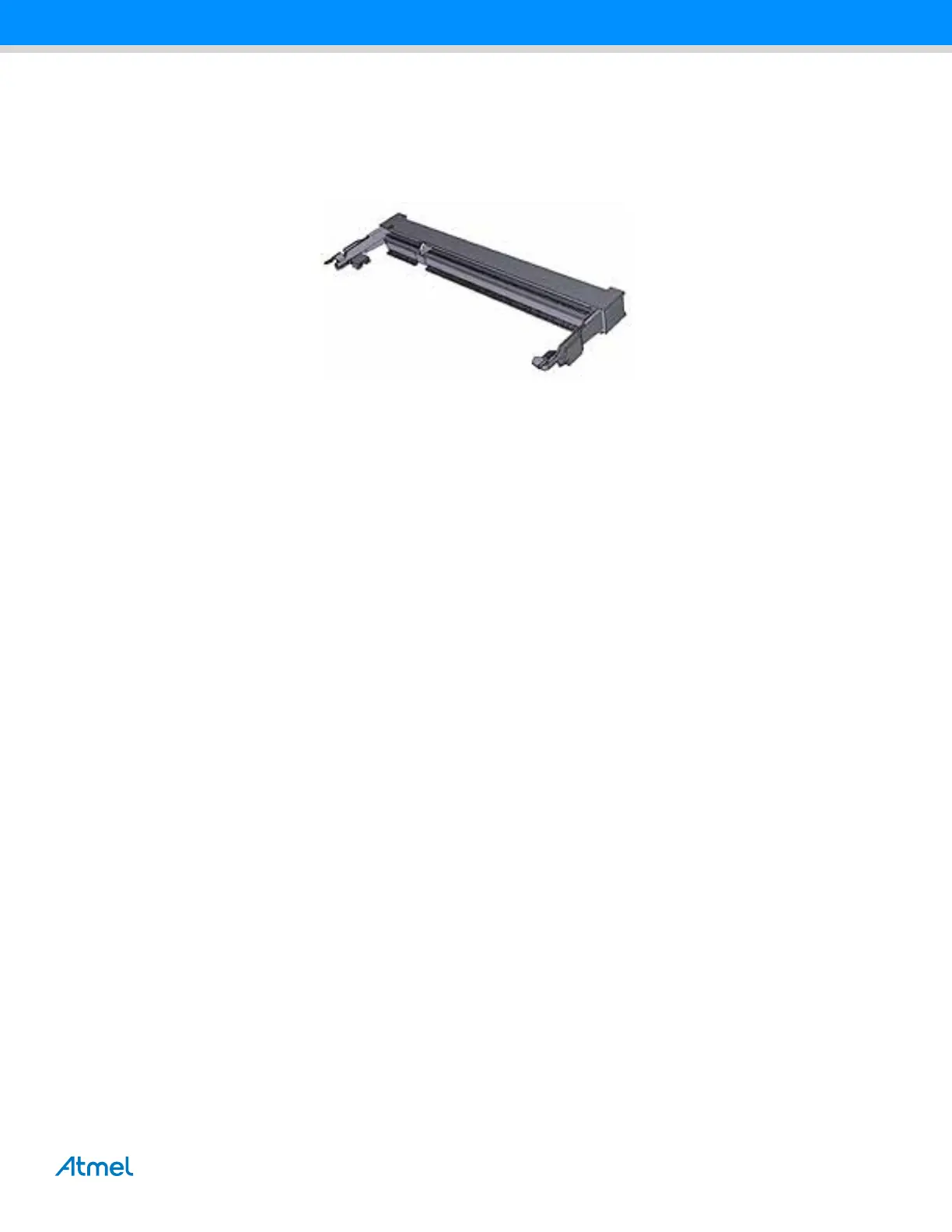

Figure 5-44. SODIMM200 Socket CON1
