Atom HSP588 - Overall Dimensions

HSP588
Use and maintenance manual pag. 10
1.5 Overall dimensions
Ref.
(mm)
Machine types
HSP 588/1 HSP 588/2 HSP 588/3 HSP 588/5
A 2140 2140 2140 2540
B 2010 2010 2010 2160
C 1940 1940 1940 2340
D 200 200 200 200
E 1700 1700 1700 2100
F 1100 1100 1100 1500
G 965 965 965 965
H 25 25 25 25
I 1299 1379 1379 1379
L 700 700 700 700
M 9 9 9 9
N 430 500 500 500
O 150 150 150 150
P 143 143 143 143
Q 1520 1620 1620 2020
V 780 780 780 780
X 430x430 500x500 500x500 500x500

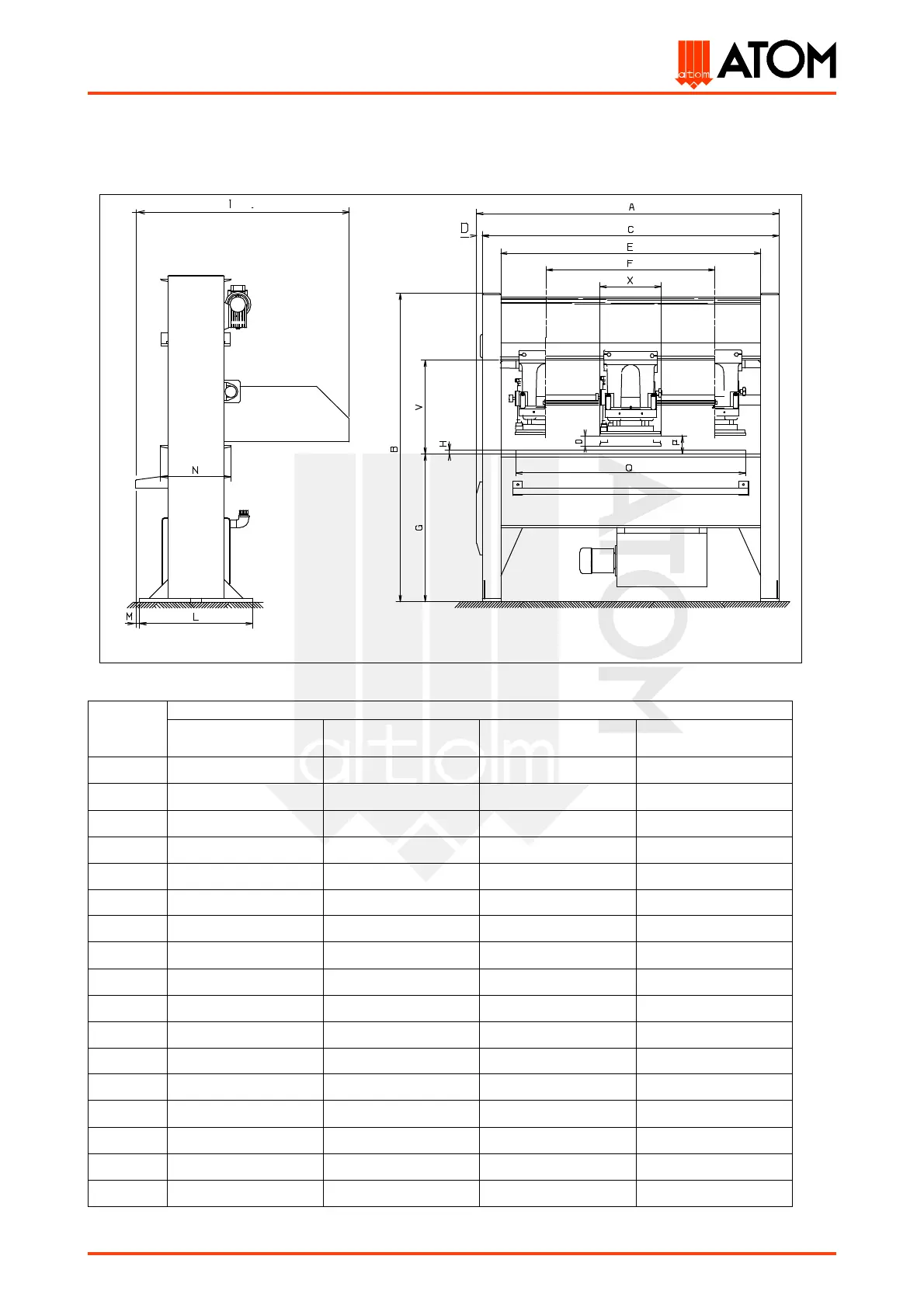

Fig. 1
