HSP588

Use and maintenance manual pag. 27

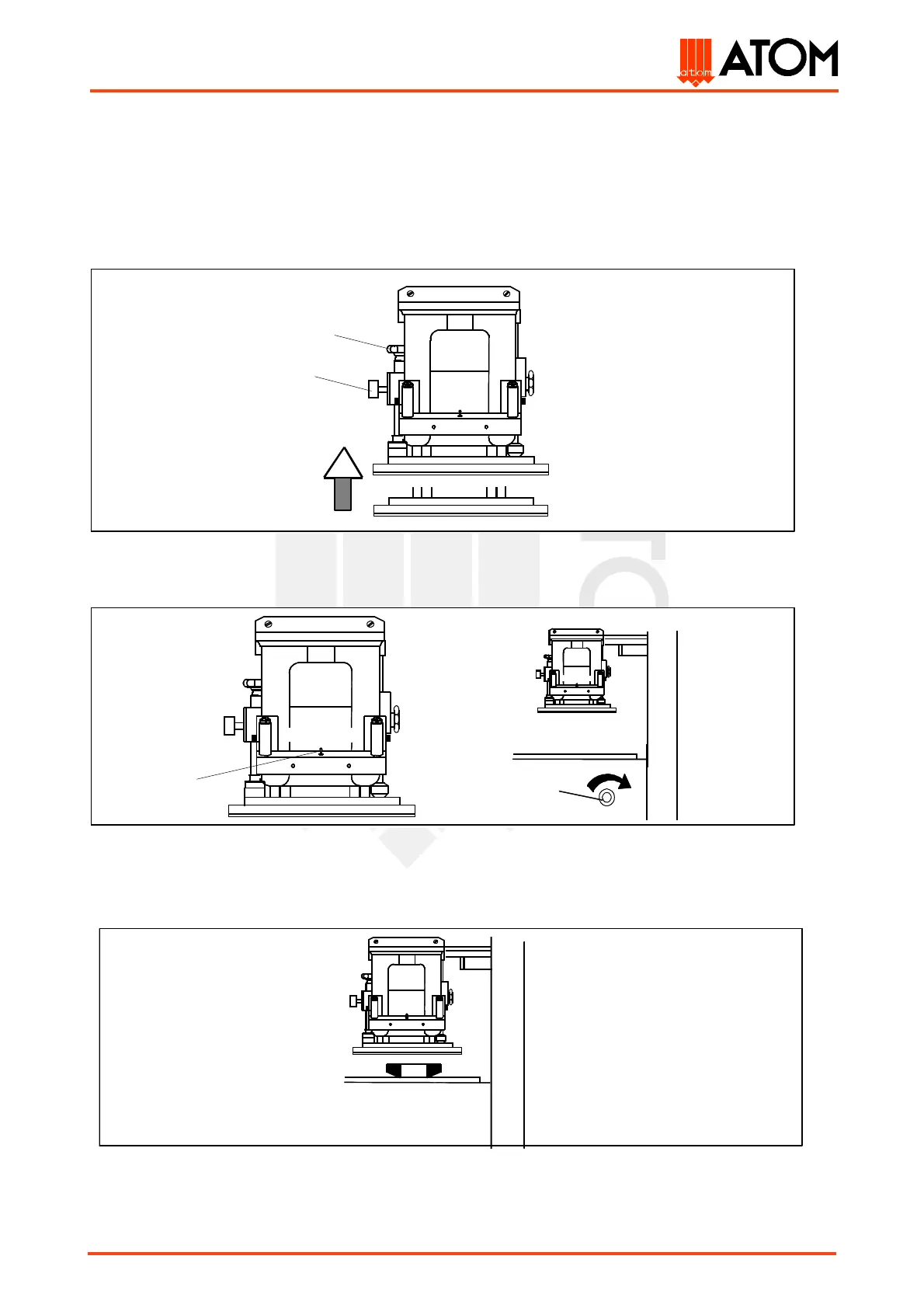

4.3 Stroke-end adjustment

To adjust the cutting stroke-end of the machine, operate as follows:

a) loosen the screw (M) and fully rotate anticlockwise the adjusting handwheel (H): the striking plate

will rise up to its highest limit (Fig. 3).

b) move the selector (G) to ADJUSTMENT position and fully turn the handwheel (V) clockwise (Fig. 4).

c) place the cutting-die between the cutting board and the striking plate without any material to be

cut (direct contact with the cutting board) (Fig. 5)

Fig. 5

Fig. 4

(V)

ADJUSTMENT

(G)

Fig. 3

(M)

(H)
