HSP588
Use and maintenance manual pag. 19
3 Maintenance
3.1 Maintenance operations
For a good machine efficiency it is recommended to periodically carry out the following maintenance
operations (points e) g) to be carried always when the machine is off !):
a) clean the travelling head slides (code 01003574 - versions /1/2/3, code 01003575 - version /5,
table. 3);
b) check the correct chain pull monthly and, if necessary, provide for its adjustment by turning
clockwise the turn buckle (code 01010596, table. 5) placed outwardly on the left side of the machine. Use a
dynamometric wrench by applying a torque of 1.5 ÷ 2.0kgm. approx. (Fig. 1)
DO NOT EXCEED SUCH VALUES IN ORDER TO AVOID ANY DAMAGE TO THE GEARS !
c) turn upside-down the cutting board (code 02000737 - version /1, code 02000738 - versions /2/3,
code 02000739 - version /5, table. 1) every week and level it whenever it presents wears or depressions of
nearly 2 mm;
d) turn upside-down and rotate of 180° the travelling head aluminum alloy plate (code 01010679 -
version /1, code 01003584 - versions /2/3/5, table. 7) at least every three months to guarantee the flatness
of the contact surface and its gradual wear;
e) replace the hydraulic oil of the machine as well as of the relevant filter (code 01003863, table .9)
every 8000 working hours;

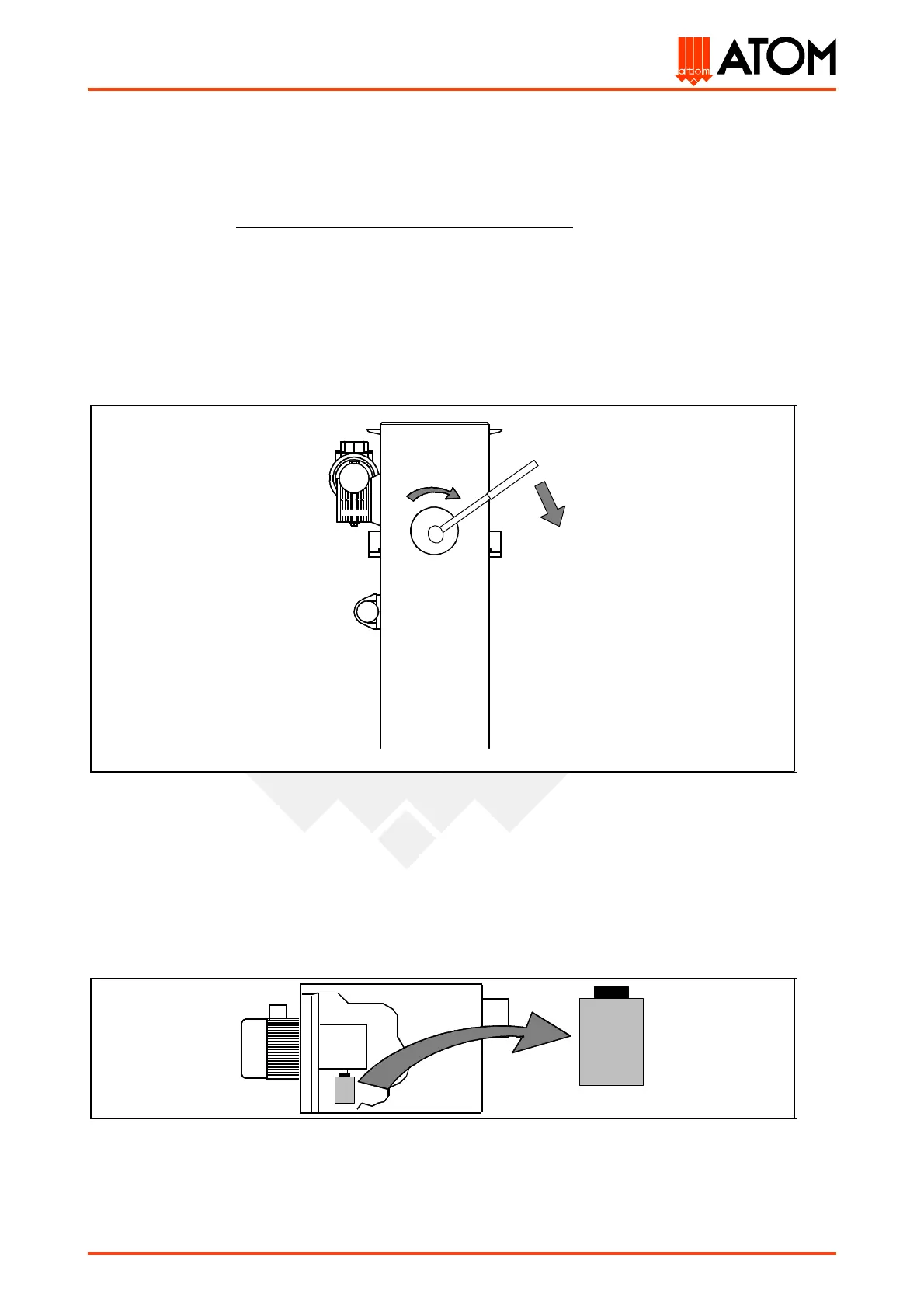

Fig. 2
