The travelling head moves correctly:
- to the left, when actuating the push-button for the trolley displacement (O)
- to the right, when actuating the push-button for the trolley displacement (I)
Should the trolley move to the opposite direction it is necessary to change the polarity of the connections.

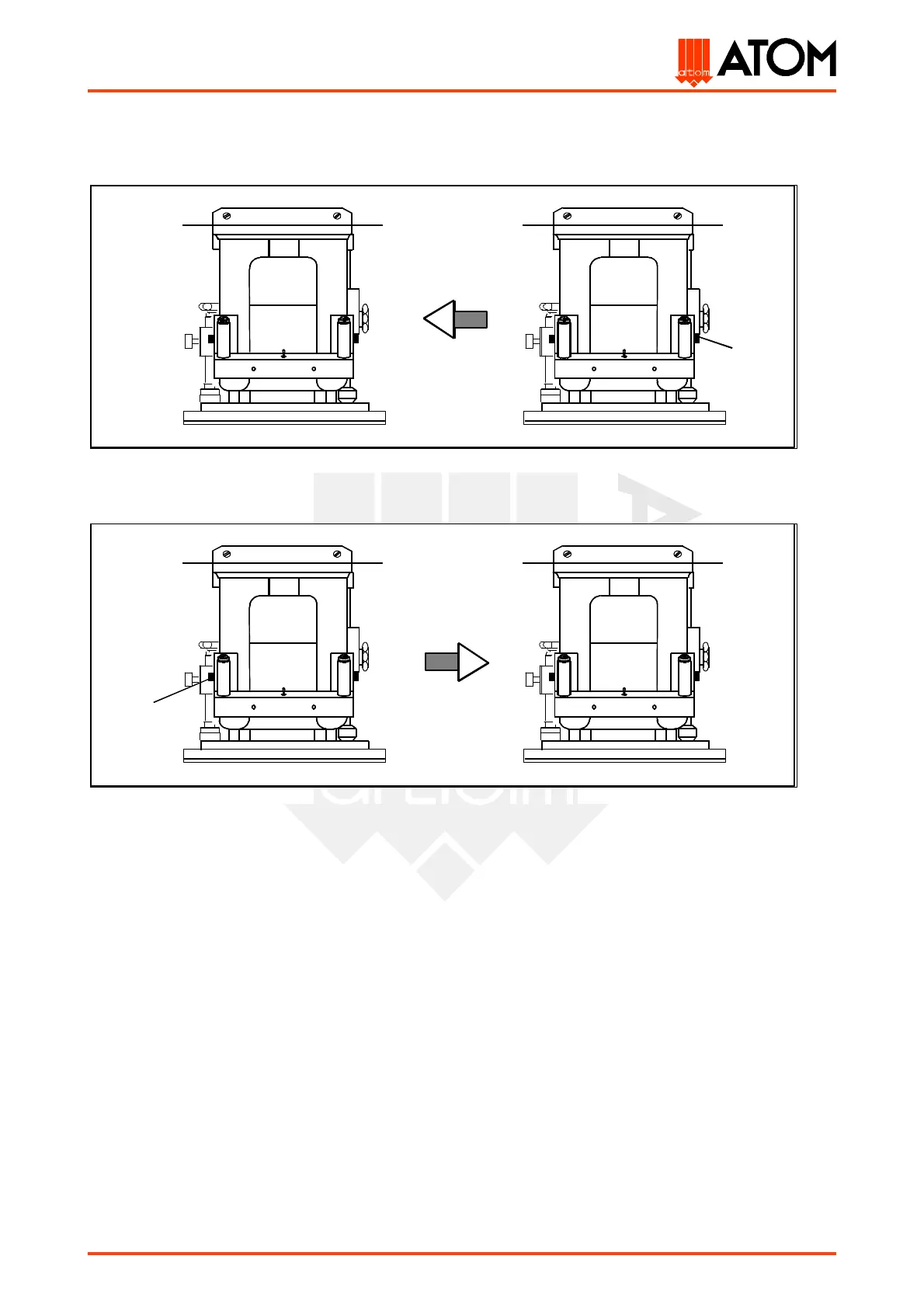

Fig. 3
(O)
Fig. 4
(I)
