Setup(EXS-3)
Assembly Guide

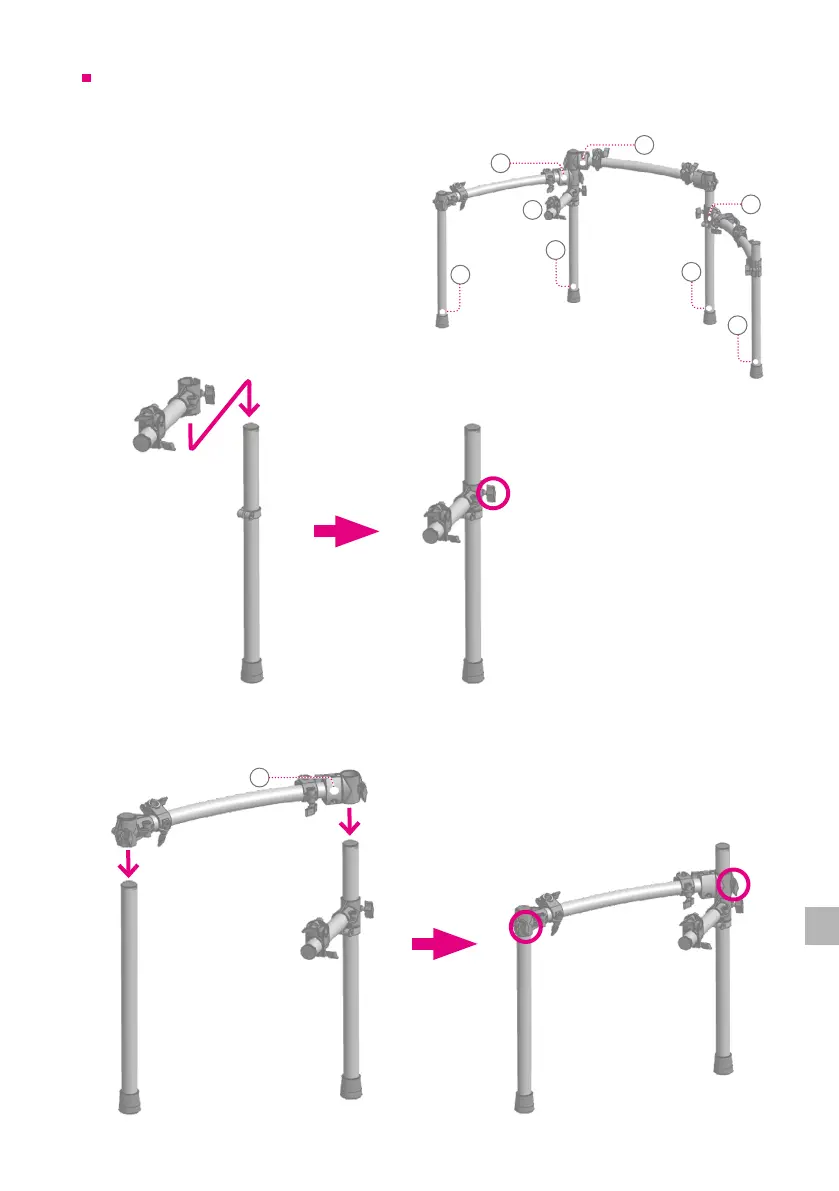

Connect tubes A to F as the gure right shows.
*A corresponding label (A to F) is attached to
each tube.
1
Insert tube A into the tube C clamp
2
Insert tube A and tube B into the clamps at the ends of tube D
Tube A
Tube A
Stand L
*Securely tighten the
clamp bolts
*Securely tighten the clamp bolt
Tube B
Tube D
Tube C
D
D
B
C
A
B
E
F
A
