Setup(EXS-3)
Hi-hat stand
2--3cm
Spar
9

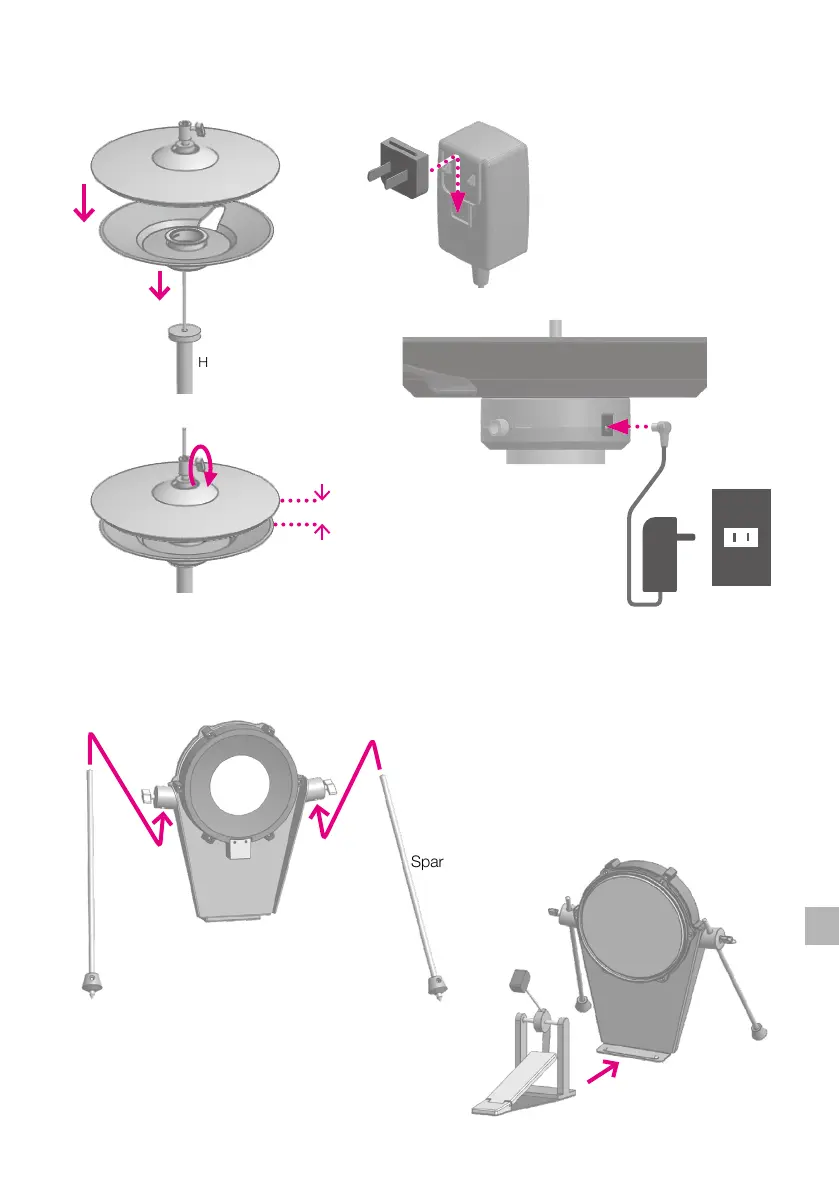

Attach the hi-hat cymbal
10
Attach the spars to the kick drum pad
1
3
2
4
5
6
*A hi-hat stand is not included.
*This AC adaptor can be used
worldwide. Please connect the
adaptor to a plug attachment (several
types included) that is correct for the
country of use.
1
2
3
*Tighten the knobs
*A kick pedal is not included.
*The tip of the spar can adjusted so it protrudes from the rubber
stopper.
*Note that the spikes can damage oors.
*Note that the spikes can damage your body.
AC adapter for hi-hat cymbal
