Setup (EXS-5)
9

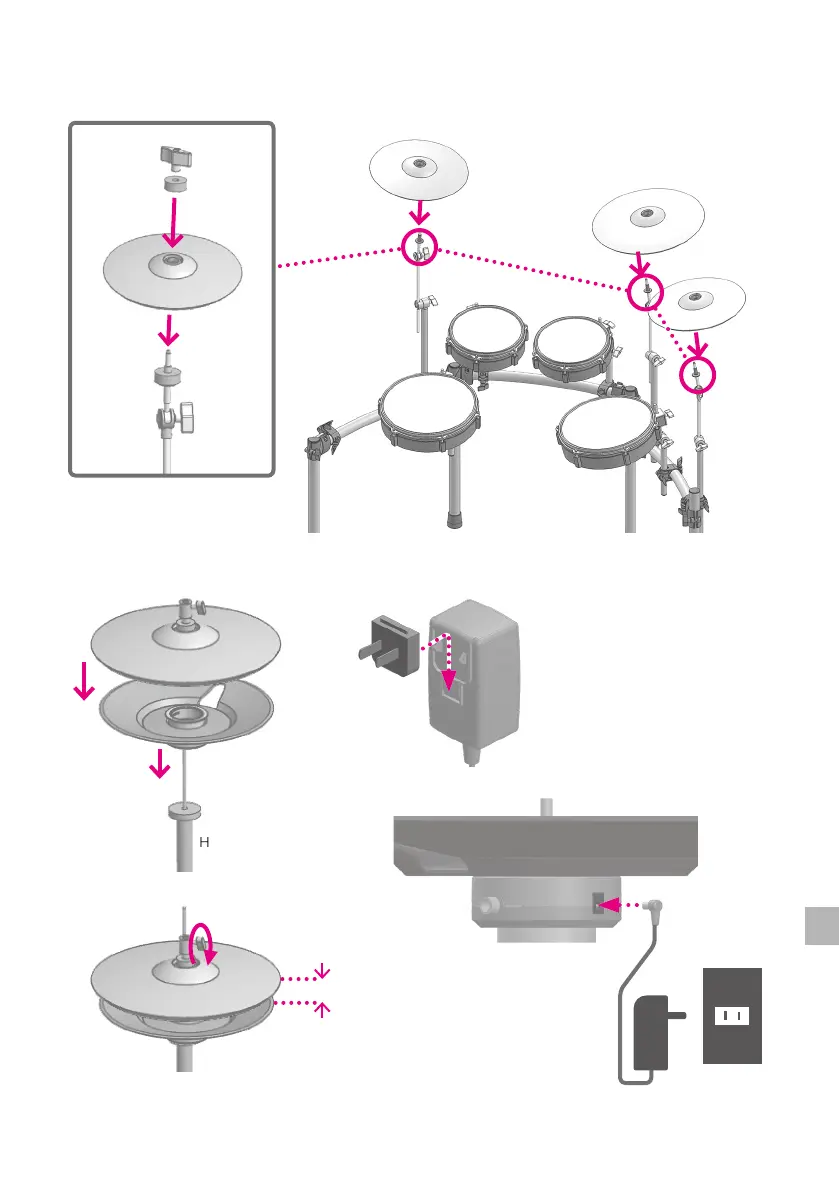

Attach the cymbal pads
10
Attach the hi-hat cymbal
1
2
14” crash cymbal
16” ride cymbal
Hi-hat stand
2--3cm
1
3
2
4
5
6
*A hi-hat stand is not included
*This AC adaptor can be used
worldwide. Please connect the
adaptor to a plug attachment (several
types included) that is correct for the
country of use.
AC adapter for hi-hat cymbal
14” crash
cymbal
