Collimate lens unit and focus lens unit of A230E electric fiber
laser cutting head.

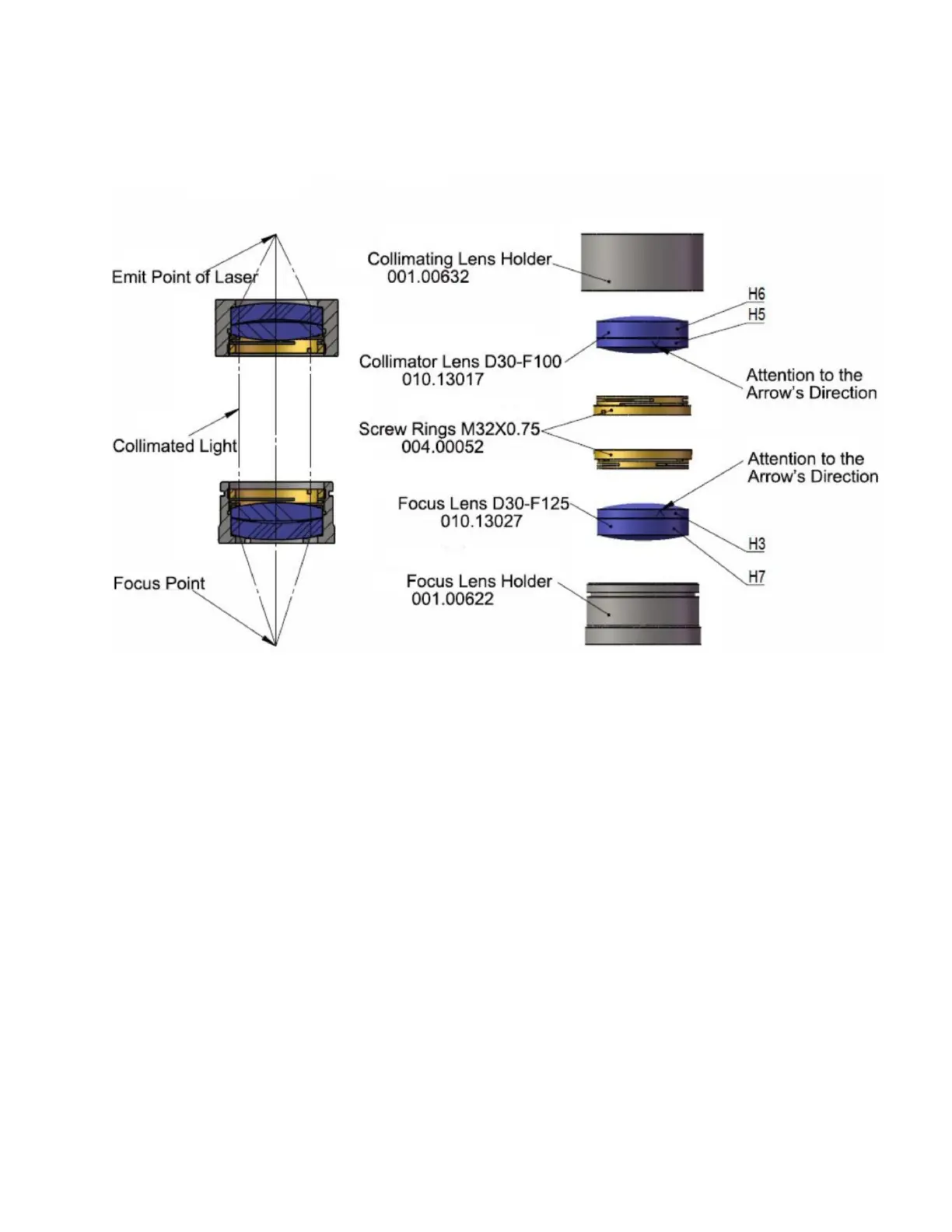

Figure 18. Collimate and focus lens’ assembly process of A230E electric fiber laser cutting
head.
