7 / 22
Installation of mechanical parts
Installation of main parts
The size of installation hole of A230E showed as figure 3. Please make sure the fiber
laser cutting head is perpendicular to the metal sheet when installing and at the same time to
make sure the cutting head has been locked stably on the cutting machine for getting a stable
cutting quality.

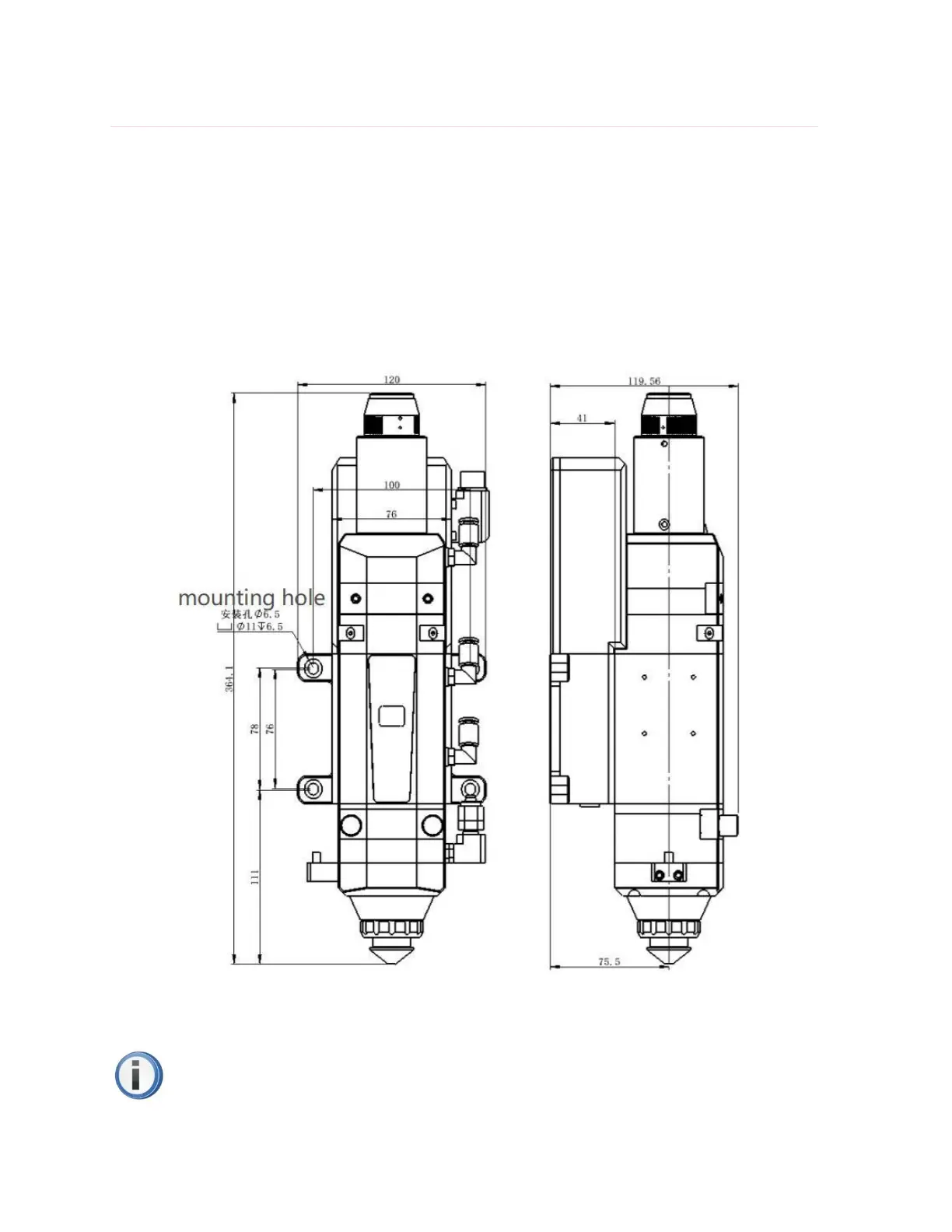

Figure 3. The size and position of installation hole of A230E fiber laser cutting head.
PS: The Z axis motor’s slide table for fixing the cutting head must be conducted with the
cutting machine and must be in ground connection properly.
