When the APC100 is connected to a LAN network without having access to internet,
the APC100 time server can synchonize with a ‘Master’ time server in your LAN
network to avoid time expiring. In this case the IP address from the ‘Master’ time
server in your network should be entered in the ‘IP Address NTP server’ field. In all
other cases this field should be left blank.
Address Settings
In this window the address settings for the APC100 can be changed.

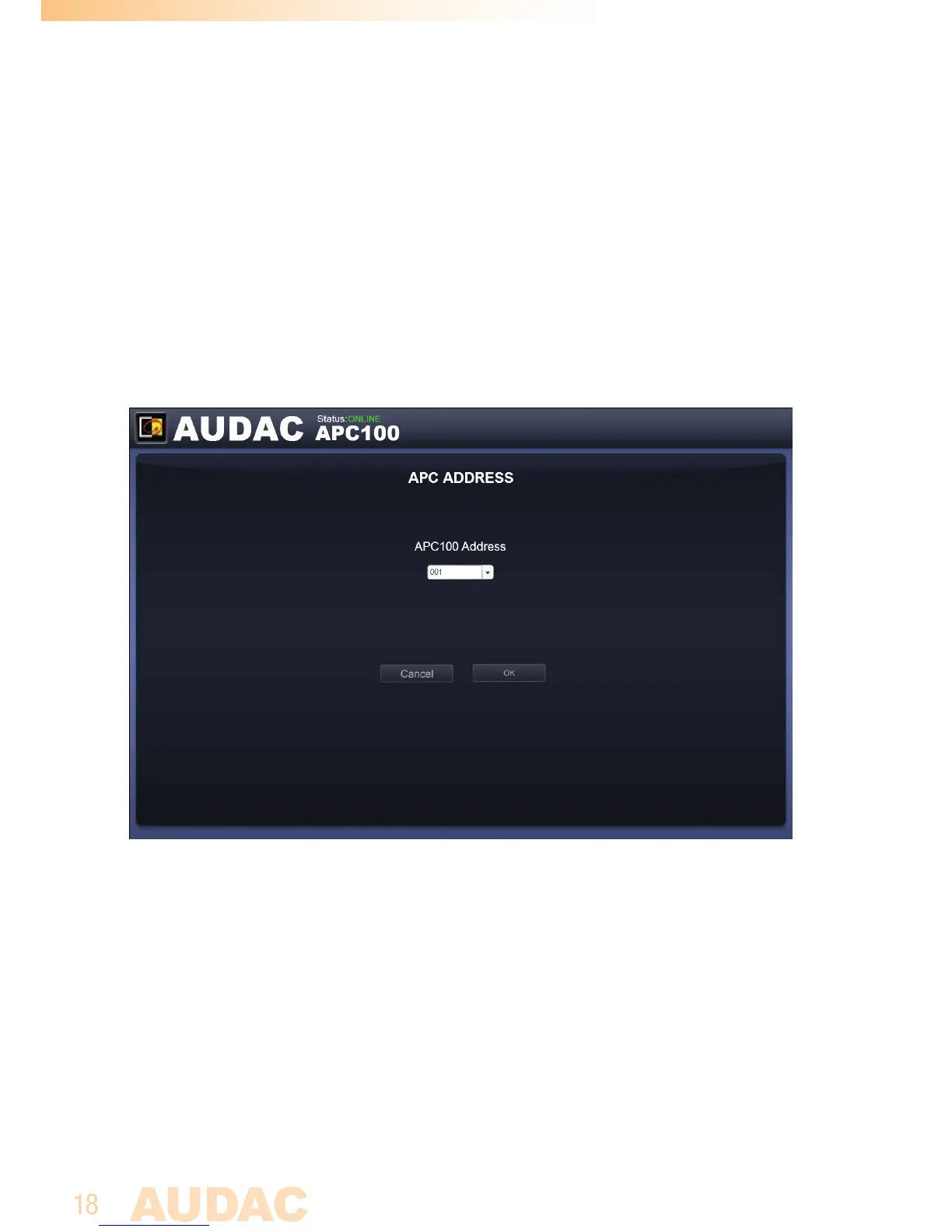

Address settings screen for APC100
In this window, the address for the APC100 can be selected. The address standard set
to ‘001’ and selectable using the dropdown list within a range of ‘001’ and ‘099’.
When multiple APC100’s are used in one configuration or installation, every APC100
should have an unique assigned address. It is recommended to use address ‘001’
for the first connected APC100 and increase by one for every subsequent connected
APC100.
