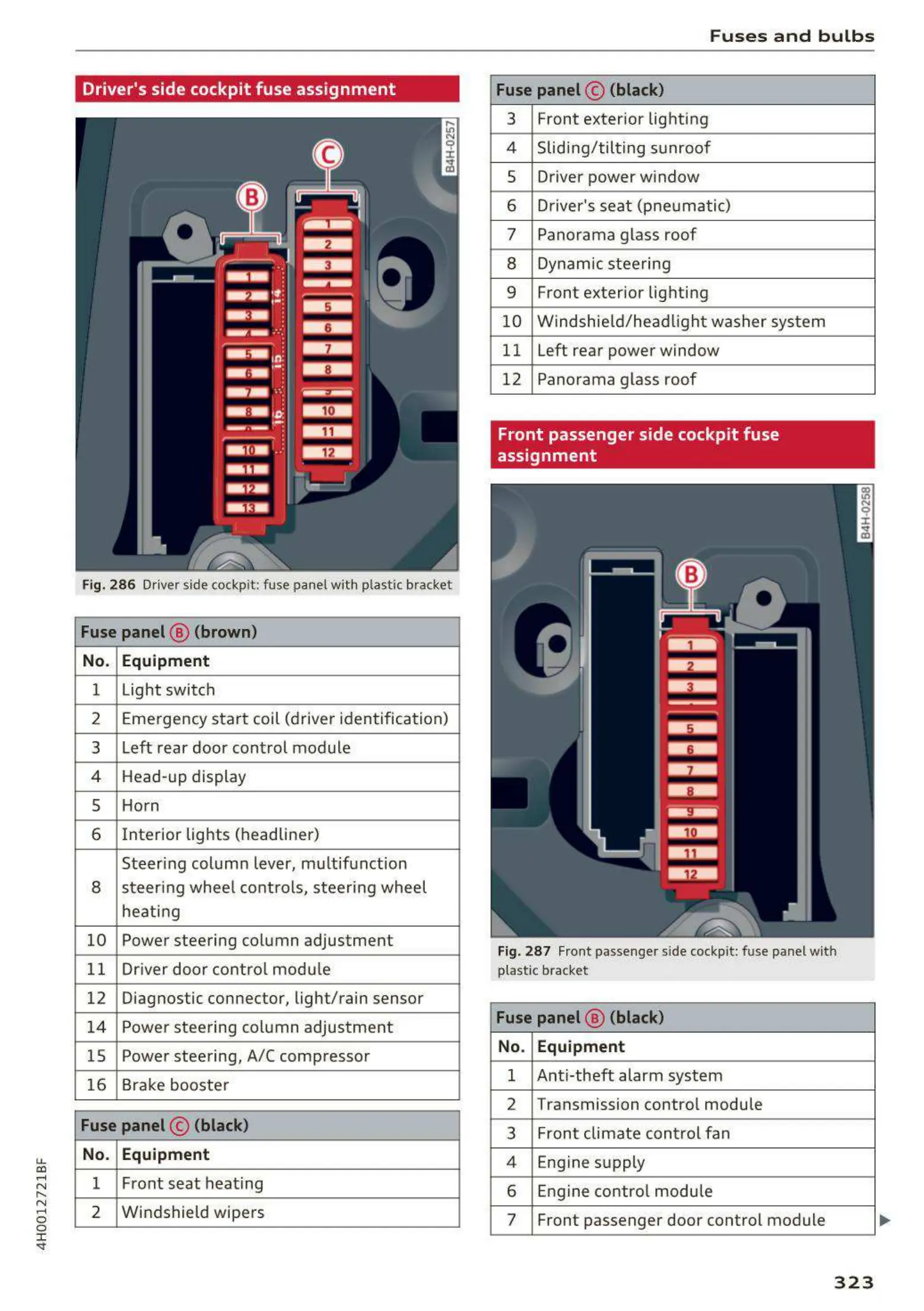

Driver's side cockpit fuse assignment
Fig. 286 Driver side cockpit: fuse panel wit h plastic bracket
Fuse panel @ (brown)
No. Equipment
1
Light switch
2
Eme rg ency start coil (driver iden t ification)
3
Left rear door con tr ol module
4
Head-up display
5 Horn
6
Interior lights (headliner)
Steering col umn lever, multifunction
8 steer ing whee l controls, steering wheel
heating
10
Powe r steering column adjustment
11 Driver door control module
12
Diagnostic con ne ctor, light/rain sensor
14 Power steering column adjustment
lS Power steering, A/C compressor
16
Brake booster
Fuse panel © (black)
No. Equipment
1 Front seat heating
2
Windshield wipers
Fuses and bulbs
Fuse panel © (black)
3
Front exterior lighting
4 Sliding/tilting sunroof
5
Driver power w indow
6 Driver 's seat (p ne umat ic)
7 Panorama glass roof
8 Dynamic steering
9
Front exterior lighting
10 Windshield/headlight washer system
11
Left rear power window
12 Panorama glass roof
Front passenger side cockpit fuse
assignment
Fig. 287 Front passe nge r side cockpit: fuse panel with
plastic bracket
Fuse panel @ (black)
No. Equipment
1 Anti-theft a larm system
2
Transmission contro l module
3 Front climate con tro l fan
4 Engine s upp ly
6 Engine control module
7 Front passenger door control module
