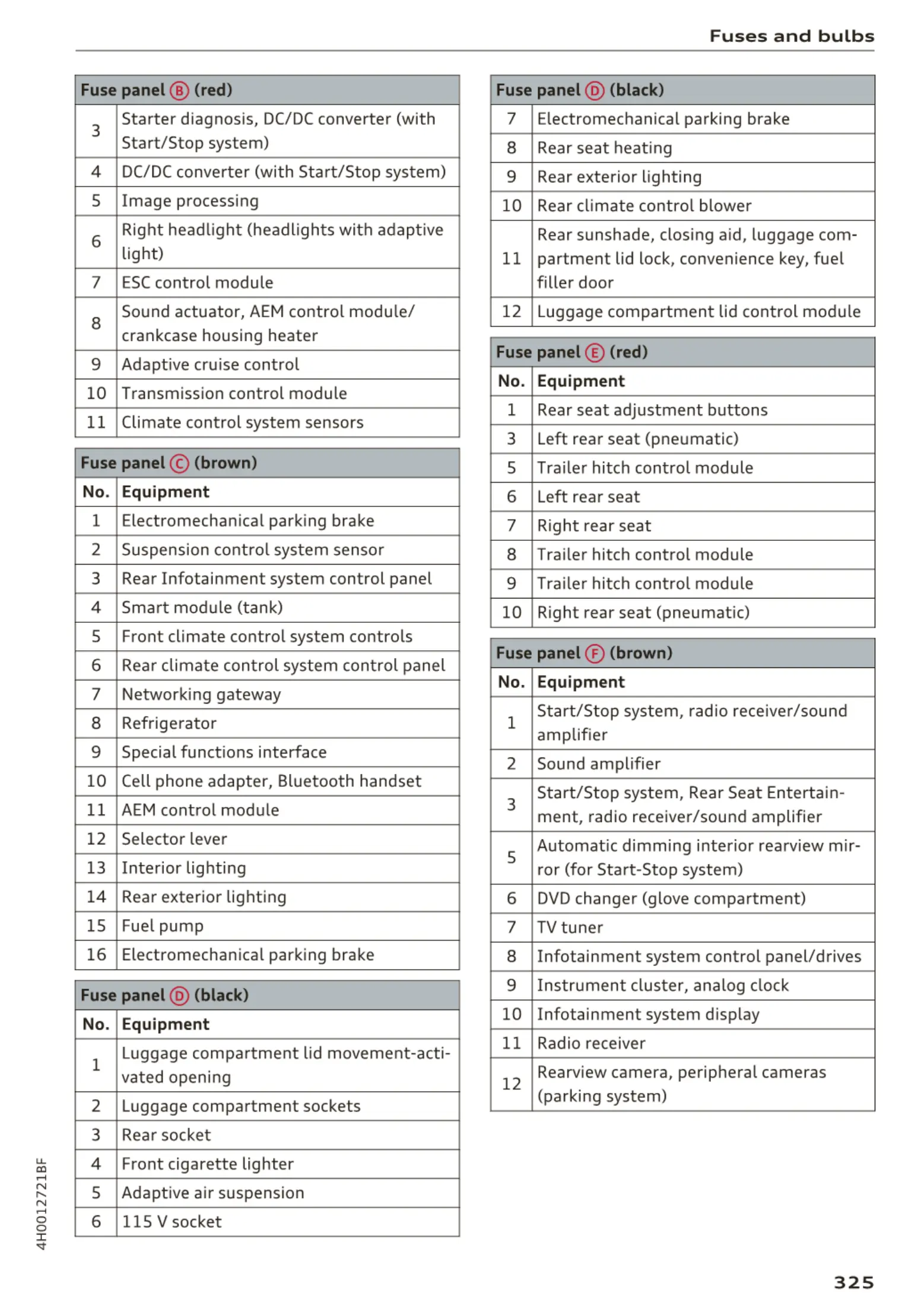

Fuse panel @ (red)
3
Starter diagnosis, DC/DC converter (with
Start/Stop system)
4 DC/DC converter (with Start/Stop system)
5
Image processing
6
Right headlight (headlights with adaptive
light)
7 ESC control module
8
Sound actuator, AEM control modu le/
crankcase housing heater
9
Adapt ive cru ise control
10 Transmission control module
11 Climate control system sensors
Fuse panel © (brown)
No. Equipment
1
Electromechan ical park ing brake
2 Suspension control system sensor
3
Rear Infotainment system control panel
4
Smart mod ule (tan k)
5
Front climate control system controls
6 Rea r cl imate control system control panel
7 Networking gateway
8 Refrige rat or
9
Special functions interface
10
Cell phone adapter, Bluetooth handset
11 AEM control module
12 Selector lever
13 Inte rior lighting
14
Rear exterior lighting
15 Fue l pump
16
Electromechanica l parking brake
Fuse panel @ (black)
No. Equipment
1
Luggage compa rtm ent lid movement-acti-
vated opening
2
Luggage compartment sockets
3 Rear socket
4 Front cigarette lighter
5 Adaptive air suspension
6
115 V socket
Fuses and bulbs
Fuse panel @ (black)
7 Electromechanical parking brake
8 Rear seat heat ing
9
Rear exterior lighting
10 Rear climate control blower
Rear sunshade, closing a id, luggage com-
11
partment lid lock, convenience key, fue l
filler door
12
Luggage compartment lid control mod ule
Fuse panel © (red)
No. Equipment
1 Rear seat adjustment buttons
3
Left rear seat (pne umatic)
5 Tra iler hitch cont rol module
6 Left rea r seat
7 Right rear seat
8
Tra iler hitch control module
9 Trailer hitch con tr ol module
10
Right rear seat (pneumat ic)
Fuse panel ® (brown)
No. Equipment
1
Start/Stop system , radio receiver/sound
amplifier
2 Sound amplifier
3
Start/Stop system, Rear Seat Ent ertain -
ment, radio receiver/sound amplifier
5
Automat ic dimming interior rea rview mir-
ror (for Start-Stop system)
6
DVD changer (glove compartment)
7 TV tuner
8
Infotainment system control panel/drives
9 Instrument cluster, analog clock
10
Infotainment system d isp lay
11 Radio receiver
12
Rearview camera, perip her a l cameras
(parking system)
