39 – Final drive - differential

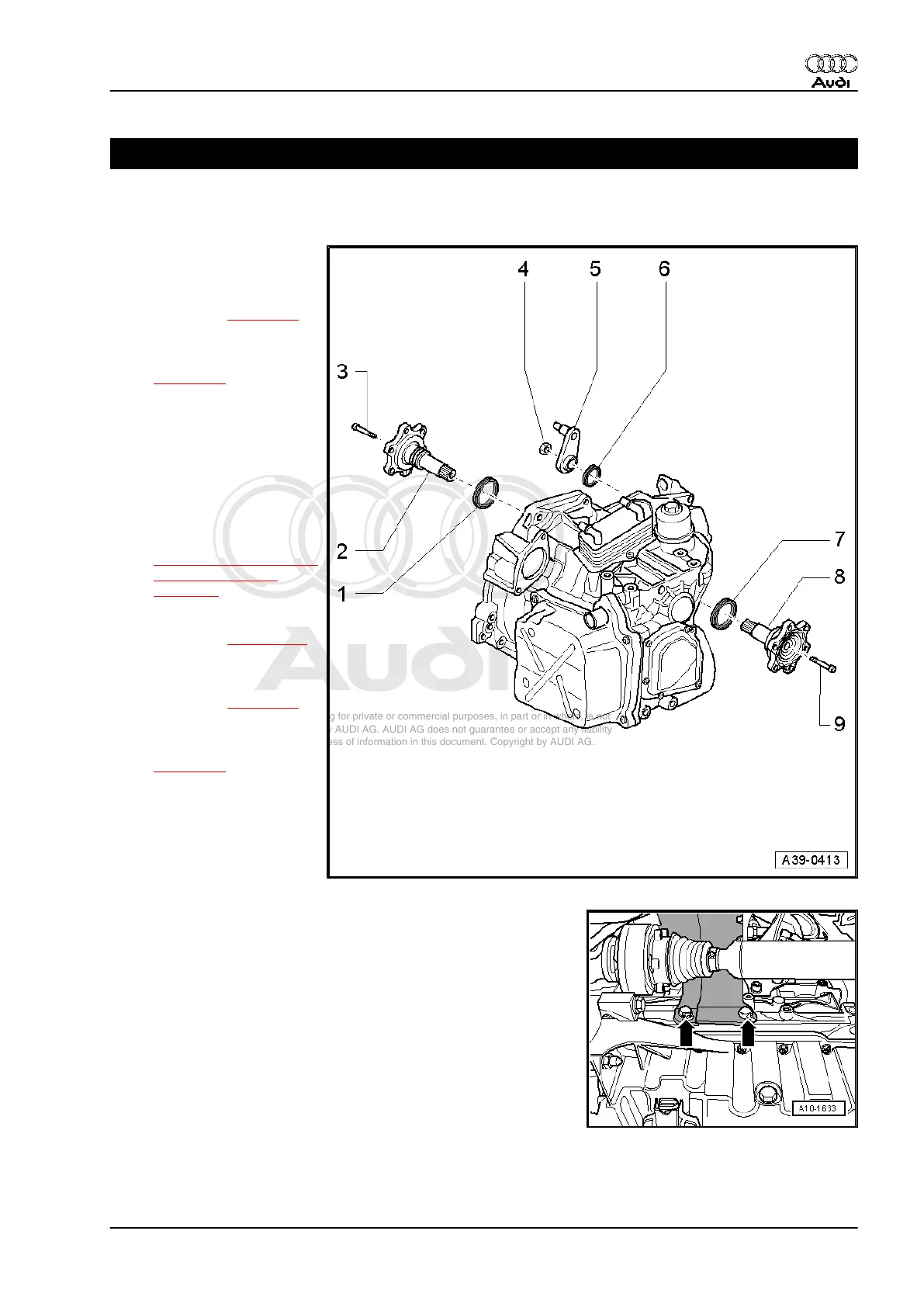

1 Flange shafts and oil seals - exploded view
1 - Oil seal
❑ For flange shaft (right-
side)
❑ Renewing
⇒ page 98
2 - Flange shaft (right-side)
❑ Removing and installing
⇒ page 95
3 - Bolt
❑ 30 Nm
❑ Renew
4 - Nut
❑ 20 Nm
5 - Selector shaft lever
❑ Removing and installing
⇒ “1.5 Renewing oil seal
for selector shaft”,
page 100
6 - Oil seal for selector shaft
❑ Renewing ⇒ page 100
7 - Oil seal for flange shaft (left-
side)
❑ Renewing ⇒ page 97
8 - Flange shaft (left-side)
❑ Removing and installing
⇒ page 94
9 - Bolt
❑ 30 Nm
❑ Renew
Heat shield for drive shaft (right-side)
Bolts -arrows-
• 35 Nm
Audi TT 2007 ➤
Direct shift gearbox 02E, front-wheel drive - Edition 12.2006
1. Flange shafts and oil seals - exploded view 93
