Page 28 DCX-127 Multifunction Module User’s Guide

15 9

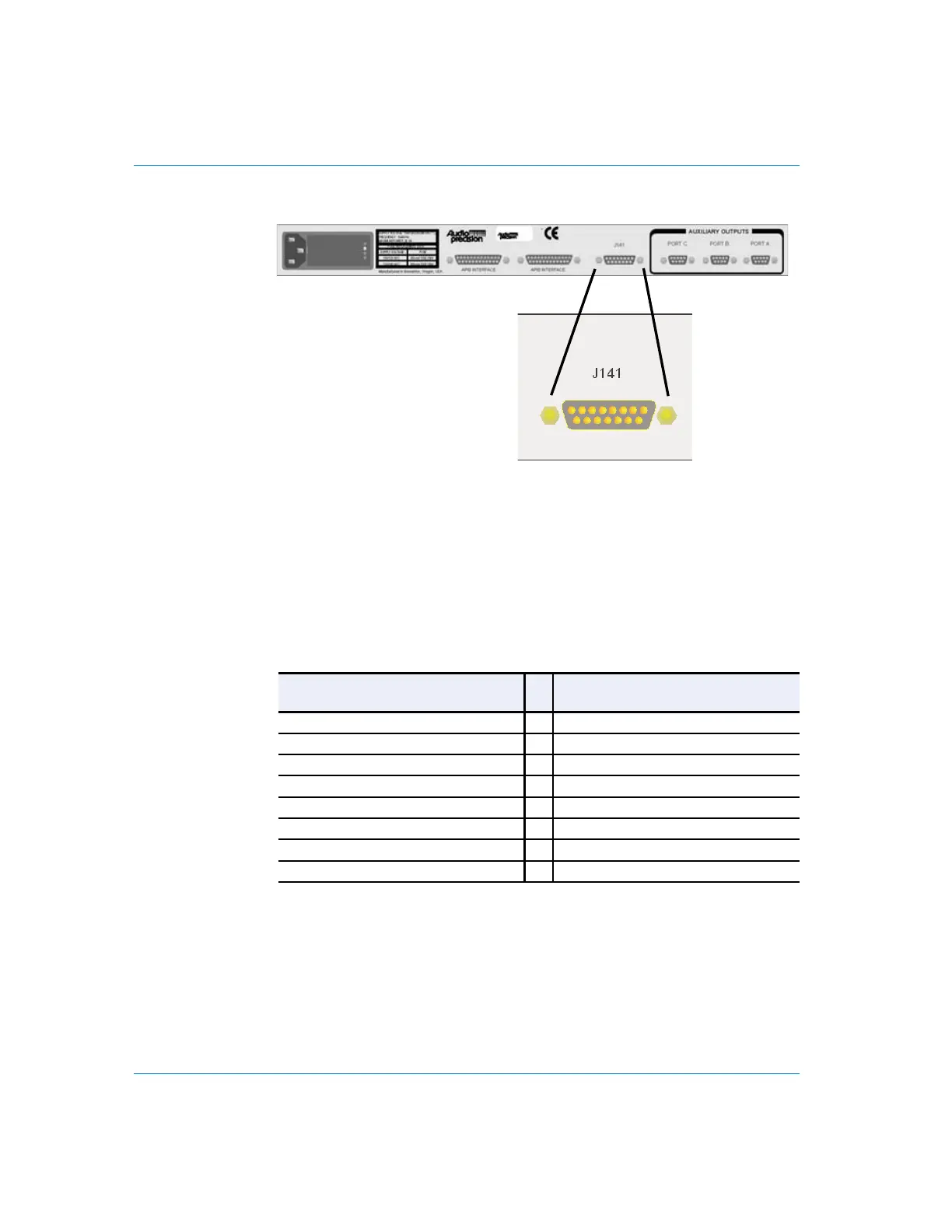

Figure 18. Connector J141 , showing pin numbering

Number

J141

Number

J141

1 Ground 9 Bit 0 (LSB)

2 Bit 7 (MSB) 10 +5 V

3 Bit 6 11 +5 V

4 Bit 5 12 +15 V

5 Bit 4 13 -15 V

6 Bit 3 14 Ground

7 Bit 2 15 Ground

8 Bit 1

Table 5. J141 (Auxiliary Output D) connector pin assignments
