Audio Technica AT-LP60X User Manual

4

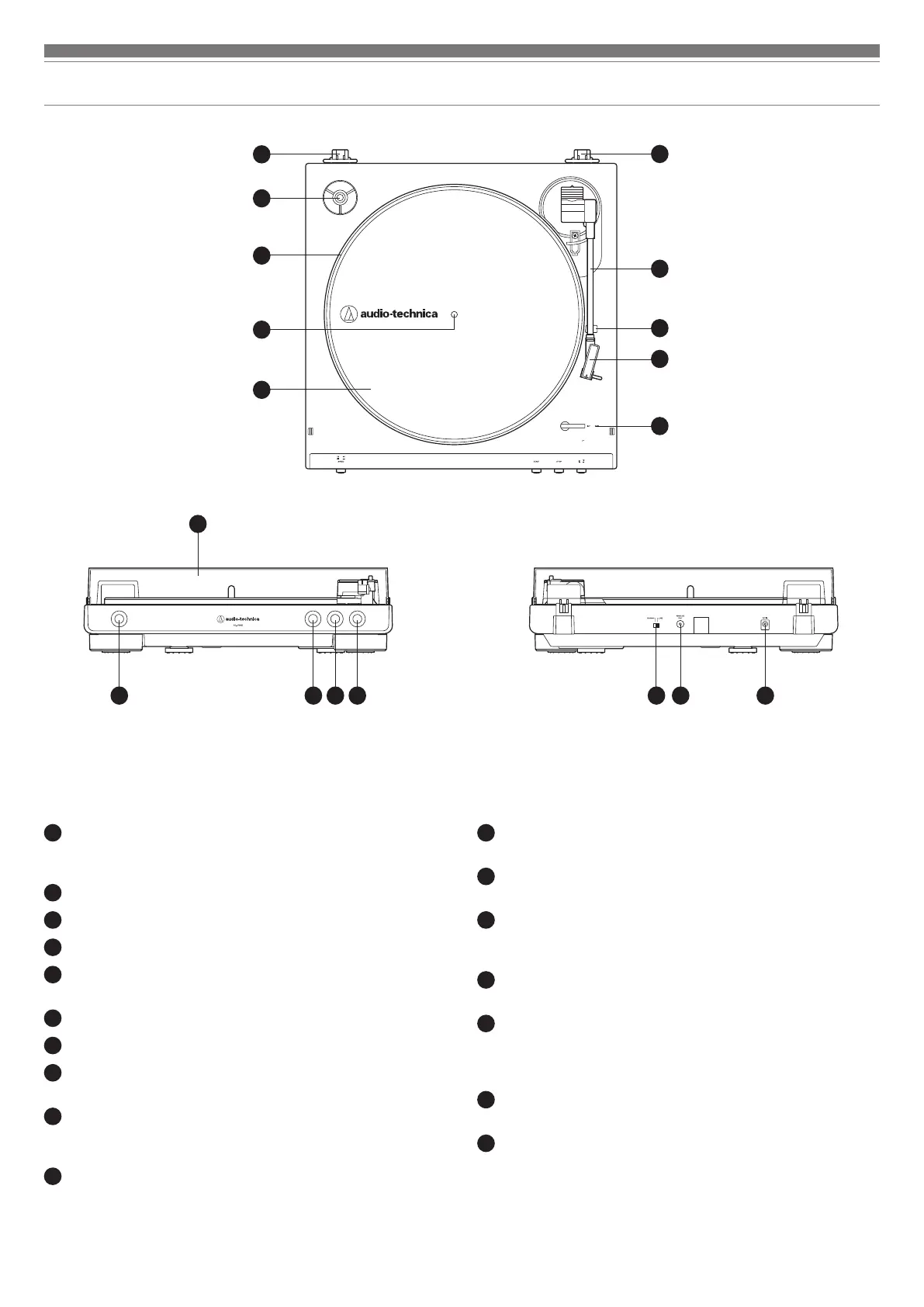

Part names and functions
1
45 RPM adapter (shown in receptacle)
Adapts 7" records with large center holes to fit center
spindle.
2
Platter
3
Spindle
4
Felt mat
5
Dust cover hinge holders
Attachment points for dust cover hinges.
6
Tonearm
7
Tonearm rest
8
Headshell and cartridge
The cartridge (AT3600L) is attached to the headshell.
9
Size selector
Switch between 12" and 7", according to the size of the
record.
10
Dust cover
11
Platter speed button
Select the platter speed (33-1/3 or 45 RPM).
12
START button
Spins the platter and moves the tonearm.
13
STOP button
Returns the tonearm to its original position and stops the
platter.
14
Tonearm lift button
Lifts and lowers tonearm for manual selection.
15
Pre-amplifier selector switch
If using an amplifier with a PHONO input jack, set this
switch to the PHONO position. If connecting to the AUX
jack of an amplifier, set this switch to the LINE position.
16
Stereo output terminals
Connect the RCA audio cable.
17
Power input jack
Connect the AC adapter.
1
2
4
3
5
5
6
7
8
9
11 12 1513 1614 17
10

Audio Technica AT-LP60X Specifications

General

Type	Fully Automatic Belt-Drive Turntable
Drive Method	Belt Drive
Speeds	33-1/3 RPM, 45 RPM
Turntable Platter	Aluminum
Phono Pre-Amp	Built-in switchable phono pre-amplifier
Output	RCA
Motor	DC servo-controlled
Phono Pre-Amp Gain	36 dB nominal, RIAA equalized
Cartridge	ATN3600L
Replacement Stylus	ATN3600L
Weight	2.6 kg
Wow and Flutter	< 0.25% (WTD) @ 3 kHz
Signal-to-Noise Ratio	50 dB
Output Level	Pre-amp 'PHONO': 2.5 mV nominal at 1 kHz, 5 cm/sec; Pre-amp 'LINE': 150 mV nominal at 1 kHz, 5 cm/sec
Stylus	0.6 mil Conical Diamond Stylus
Dimensions	359.5 mm x 97.5 mm x 373.3 mm
