Audio Technica ATW-T3201a User Manual

11

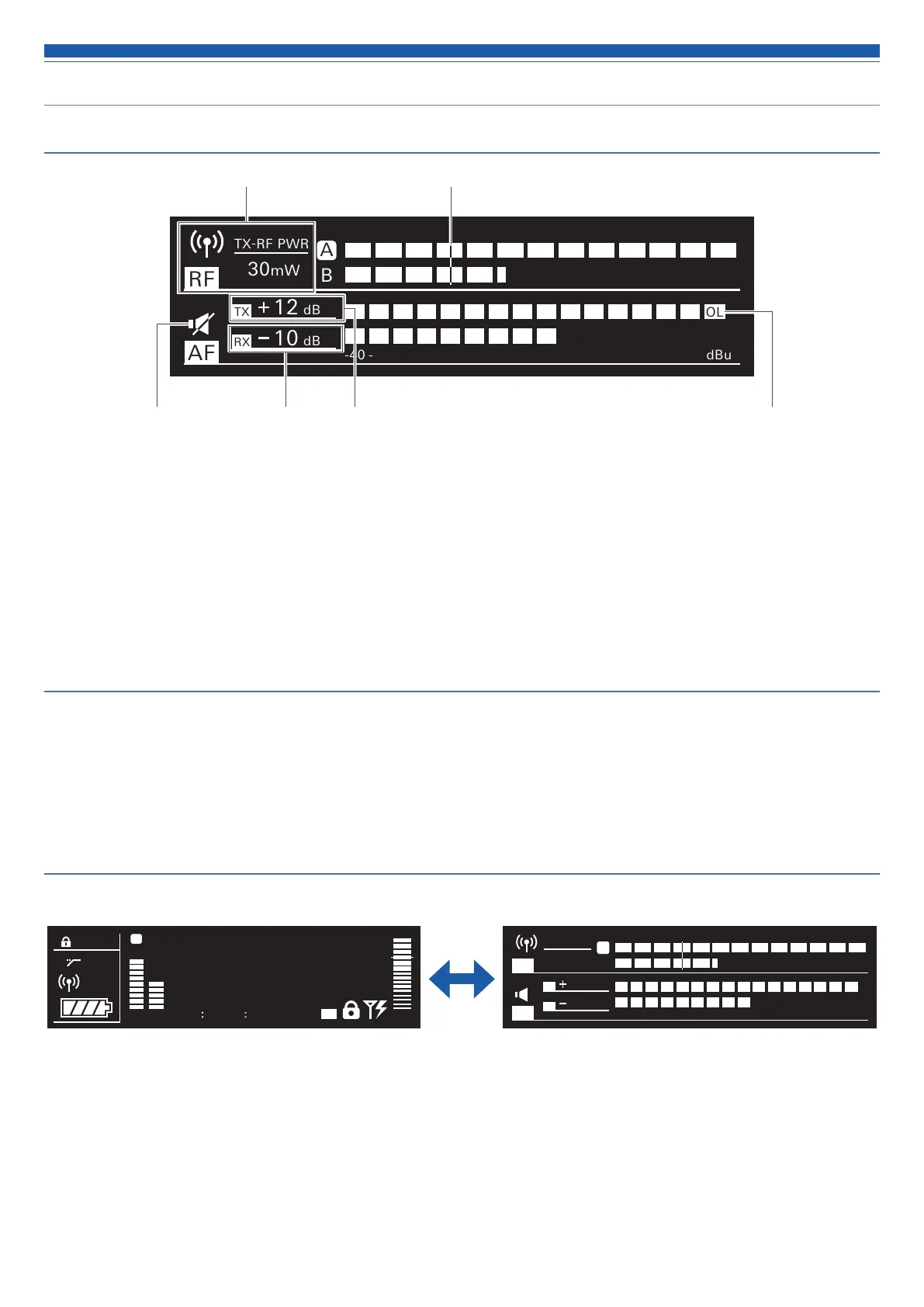

How to read the display
Level meter screen
Minimum hold function
If you press the BACK button on the level meter screen, the minimum hold function turns on and its marker is displayed.
• The marker indicates the lowest level of RF signal received from the transmitter.
• The marker does not move if the input RF level is higher than the marker position.
• If the RF level input is lower than the marker position, the marker moves in tandem with the RF level.
• To reset the marker position, press the BACK button again.
Switching between screens
The screen is switched every time the control dial is rotated right or left.
B
RF
TX
AF
A
30
mW
TX
-
RF PWR
-92
-40 -30 -24 -18 -15 -12 -10 -8 -6 -4 -2 0 +2 +4 +6 dBu
-86 -80 -74 dBm
RX
12 dB
10 dB
OL
TX
HPF
B
RF AF
BU
0
000.000
VOCAL1
MHz
A
30mW
G 06 C 12
Main screen
B
RF
TX
AF
A
30
mW
TX
-
RF PWR
-92
-40 -30 -24 -18 -15 -12 -10 -8 -6 -4 -2 0 +2 +4 +6 dBu
-86 -80 -74 dBm
RX
12 dB
10 dB
OL
Level meter screen
❶ RF power indicator (transmitter)
❷ Marker (when the minimum hold function is on)
Shows the minimum level at which the RF is held.
❸ Mute indicator
A speaker icon with a slash through it is displayed when
transmitter is muted.
❹ Audio output indicator (receiver)
❺ Gain indicator (transmitter)
❻ Overload (excessive input) indicator
❶
❷
❸ ❹ ❺
❻
