Part names and functions

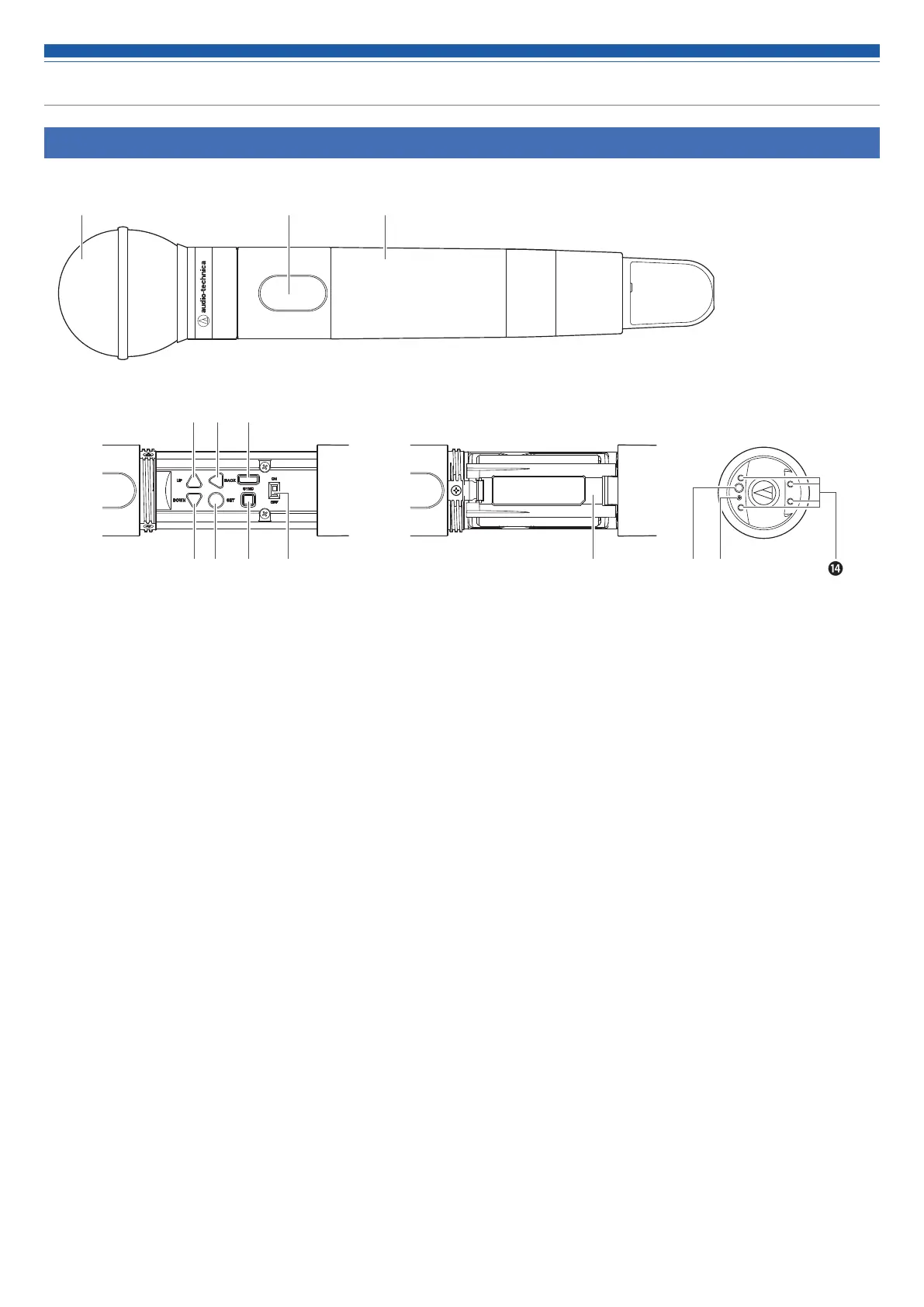

ATW-T3202 / ATW-T3202a
❶ Interchangeable microphone capsule
❷ Display
Shows the current status.
If no buttons are pressed for a period of 30 seconds, the display
will turn off.
❸ Grip case
❹ UP button
Use to select various settings.
❺ BACK button
Press to return to the previous screen.
Returns to the Main screen when pressed and held.
❻ IR sync window
Use to IR SYNC with the receiver (ATW-R3210).
❼ DOWN button
Use to select various settings.
❽ SET button
Press to confirm a selection.
❾ SYNC button
Use to IR SYNC with the receiver (ATW-R3210).
❿ Power switch
Use to turn the power on or off.
⓫ Battery cover
⓬ Function button
Press briefly to turn the screen back on if it shuts off. When the
function is set, the preselected operation is performed.
⓭ Indicator
LED that shows the status of the transmitter.
When the power is turned ON: Solid green
When the transmitter is muted: Solid red
⓮ Charging terminal
❸❷❶
❹ ❺ ❻
❼ ❽ ❾ ❿ ⓬ ⓮⓭
⓫
