Audio bit Ten - PC and DRC Connection; High-Level Input Signal Configurations

ADVANCED MANUAL / bit Ten /
10
1. SPEAKERS IN HI-LEVEL STEREO FRONT+REAR
(see 8.1)
* To disable the Speaker Turn on function on the Front Left channel, move the indicated switch to the left to “OFF” position.
2. SPEAKERS IN HI-LEVEL MULTICHANNEL
(see 8.2)

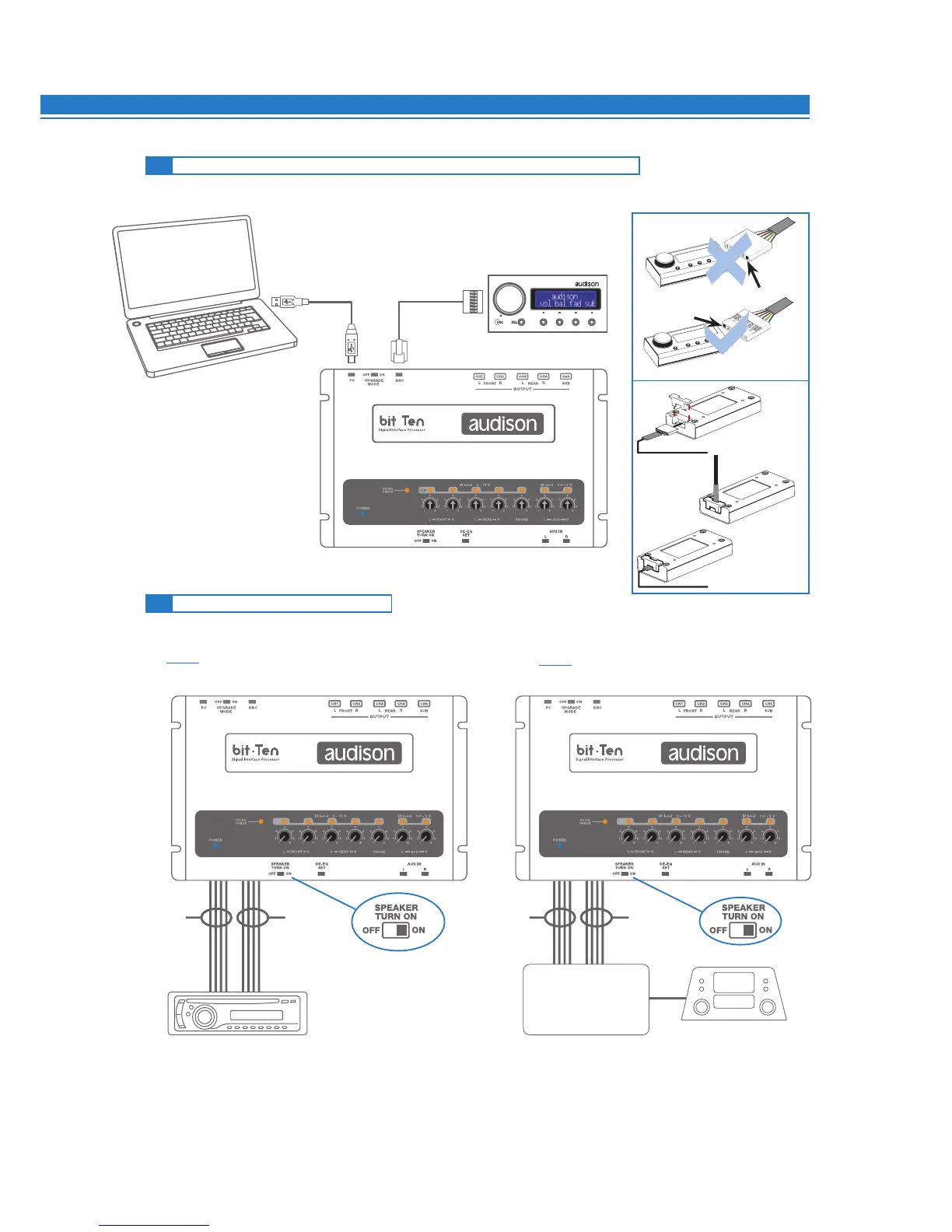

5.3 PERSONAL COMPUTER AND DIGITAL REMOTE CONTROL (DRC)
5.4 HIGH-LEVEL INPUT SIGNALS
(optional)
5
USB cable
(provided)
FRONT
REAR
AMPLIFIED RADIO DECK OEM - ORIGINAL AMPLIFIER SOURCE
FRONT HI
MAX: 4 AMPLIFIED
CHANNELS
FRONT LOW
OK
NO
DRC/ACLink cable
(provied)
*
*
