Audio bit Ten - Output Signal Connections; Output Connections to Amplifier Systems

ADVANCED MANUAL / bit Ten /
12

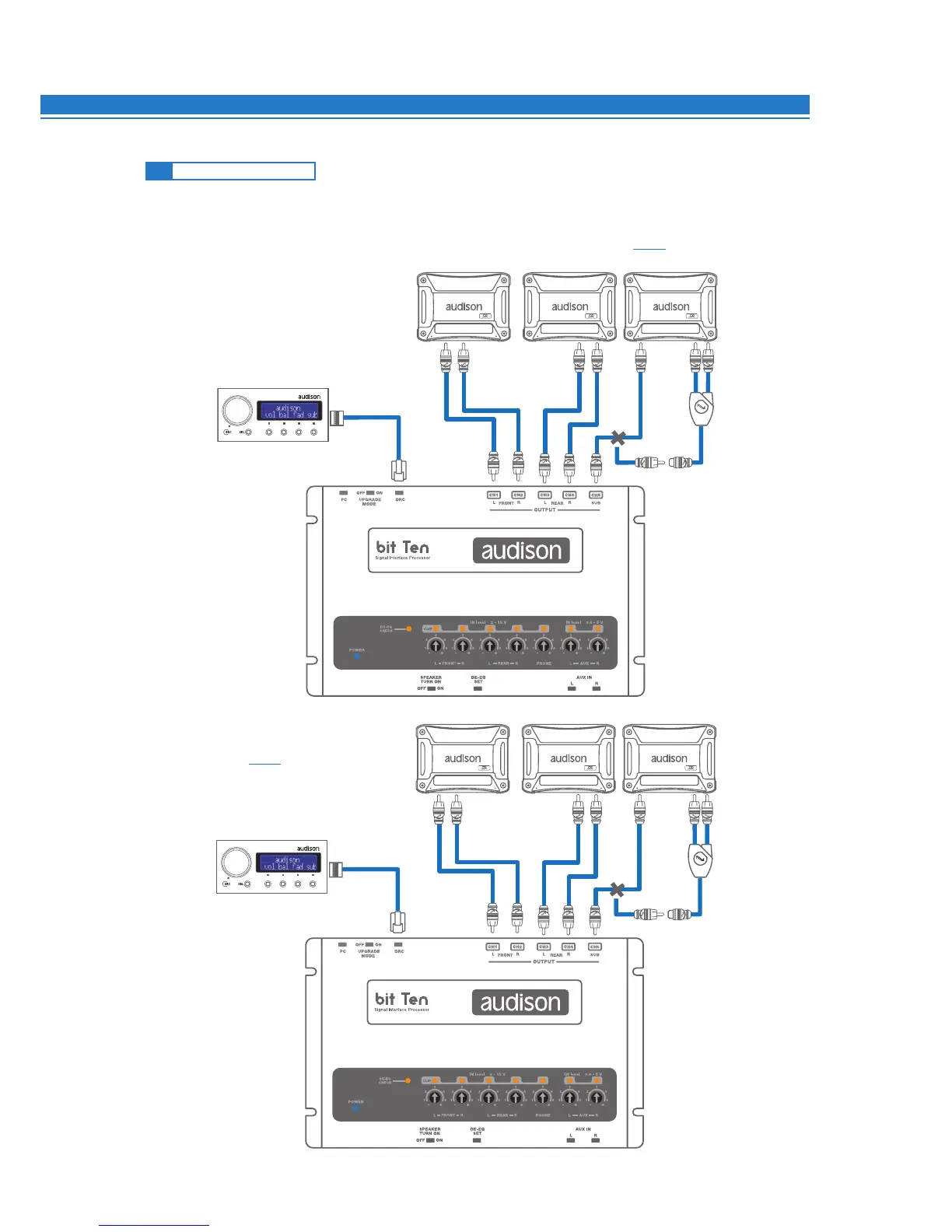

5.7 OUTPUT SIGNALS
OUTPUT TO AN AMPLIFIER’S SYSTEM
Example of a Front Rear + Sub amplifier’s system, connected with the default settings
(see 8.1).
Some SUB amplifiers
inputs need RCA split.
Some SUB amplifiers
inputs need RCA split.
Example of a 2-way active Front + Sub
amplifier’s system
(see 8.2).
DRC (optional)
FRONT REAR SUB
DRC (optional)
SUB
FRONT WF FRONT TW
5
DRC (optional)
FRONT REAR SUB
DRC (optional)
SUB
FRONT WF FRONT TW
