How to install the DRC
(optional)
DRC
Warning: do not use aggressive
cleaning agents or abrasive cloth
to clean the display. Simply use a
soft cotton cloth lightly damped
with water.
4,2x20mm / 0,16”x0,78”
3. bit Ten D and DRC INSTALLATION

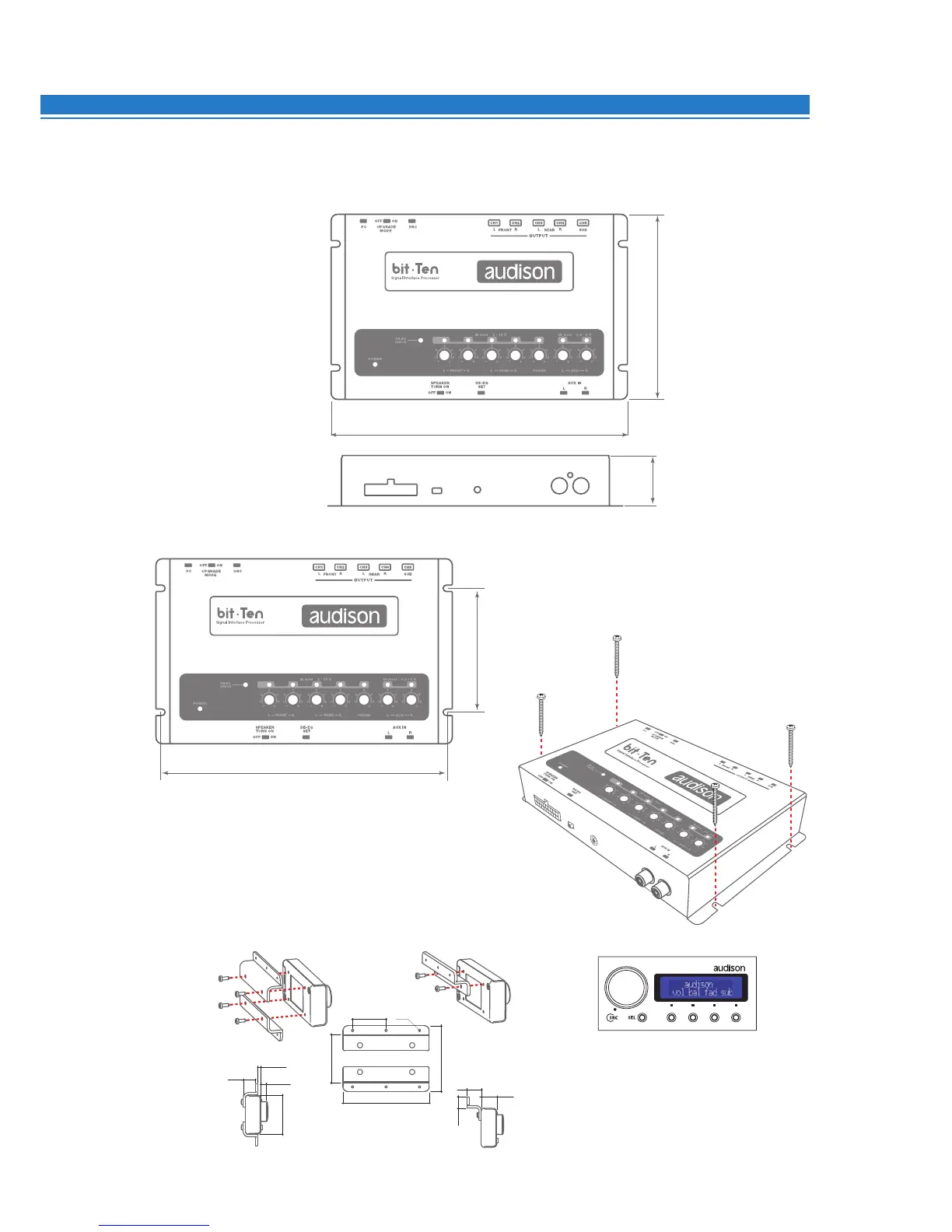

External dimensions
Mounting dimensions
68 mm / 2.68”
90 mm / 3.54”
35 mm / 1.38” Ø 2 mm / 1/8”
50 mm / 2”
16 mm / 0.63”
17 mm / 0.67”
12.5 mm / 0.49”
43.5 mm / 1.71”
13.5 mm / 0.53”
3.5 mm / 0.14”
6 mm / 0.23”
3
183.6 mm / 7.22”
80 mm / 3.14”
191 mm / 7.51”
121 mm / 4.76”
34 mm / 1,33”
183.6 mm / 7.22”
80 mm / 3.14”
191 mm / 7.51”
121 mm / 4.76”
34 mm / 1,33”
183.6 mm / 7.22”
80 mm / 3.14”
191 mm / 7.51”
121 mm / 4.76”34 mm / 1,33”
How to install
