1. AUX IN L - R; auxiliary low-level stereo input.
The bit Ten comes with an auxiliary stereo signal input to connect an external source, mp3 player, audio
sources. Input sensitivity is adjustable from 0.6 to 5 V RMS.
2. INPUTS; RL - FL - FR - RR. Hi-level MASTER inputs (SPEAKERS).
The bit Ten comes with 4 HI-LEVEL signal inputs to connect amplified signal cables coming from the main
analog source. Input sensitivity is adjustable from 2 to 15 V RMS.
Remark:
If a low-level output source (PRE OUT) with output signal equal or greater than 2 V RMS is available, you can
connect it to the high-level MASTER inputs (SPEAKERS).
Sensitivity is increased by adjusting the IN LEVEL controls
(see 8.1.2 - 8.1.9)
.
3. PHONE; input for phone hands-free kits.
IN + - : Connect the audio output cables coming from the hands-free kit system in use. Input sensitivity is
adjustable from 2 to 15 V RMS.
MUTE: Connect the hands-free kit remote mute control (MUTE / PHONE MUTE). This control works by
earthing the terminal.
Remark:
The PHONE MUTE terminal can be used also to enable the AUX input
(see 8.6.5)
.
In this case the PHONE input won’t be active.

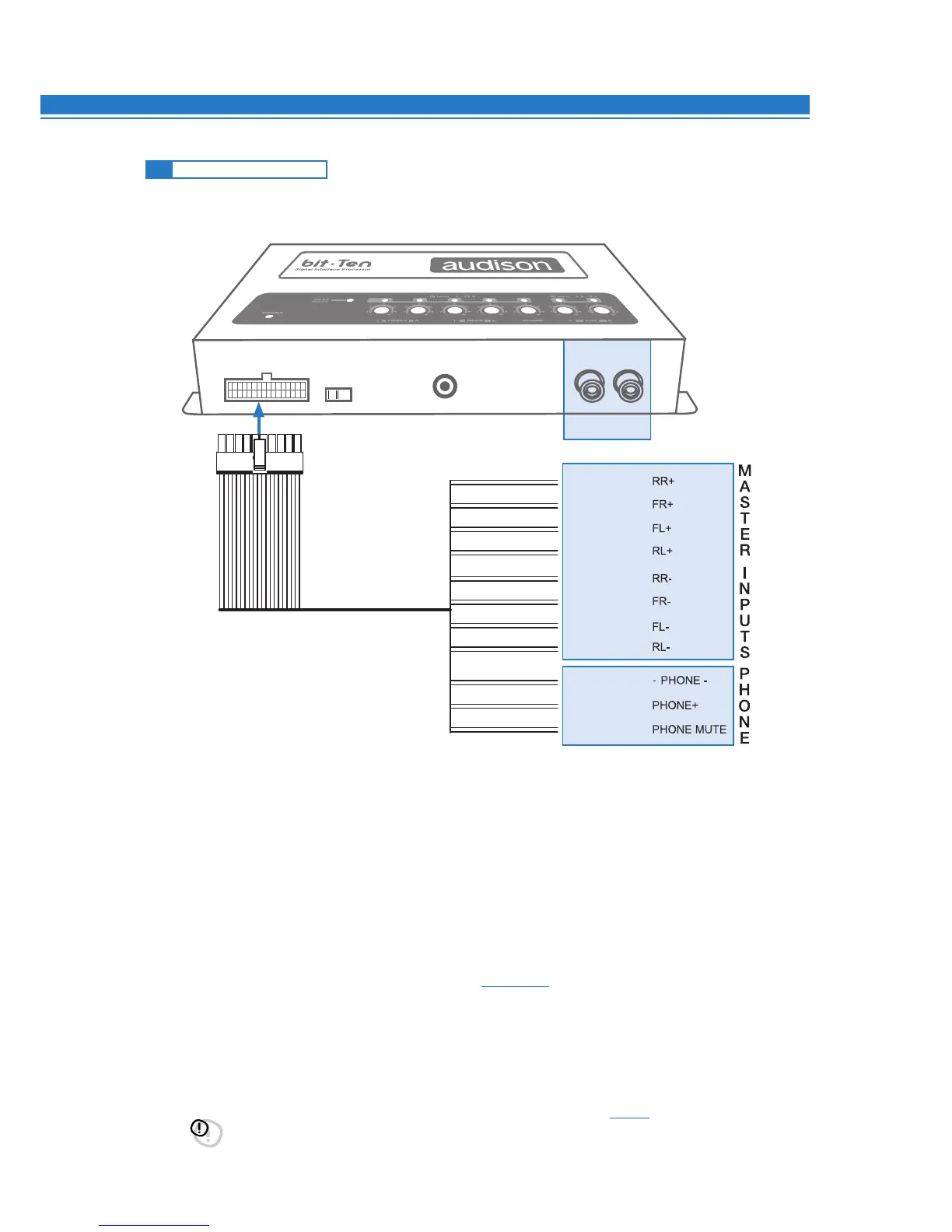

4.2 INPUT SIGNALS
4
1
2
3
1: violet
2: gray
3: white
4: green
