Audio bit Ten - Connection Panel Description; Multipolar Connector Details

ADVANCED MANUAL / bit Ten /
5

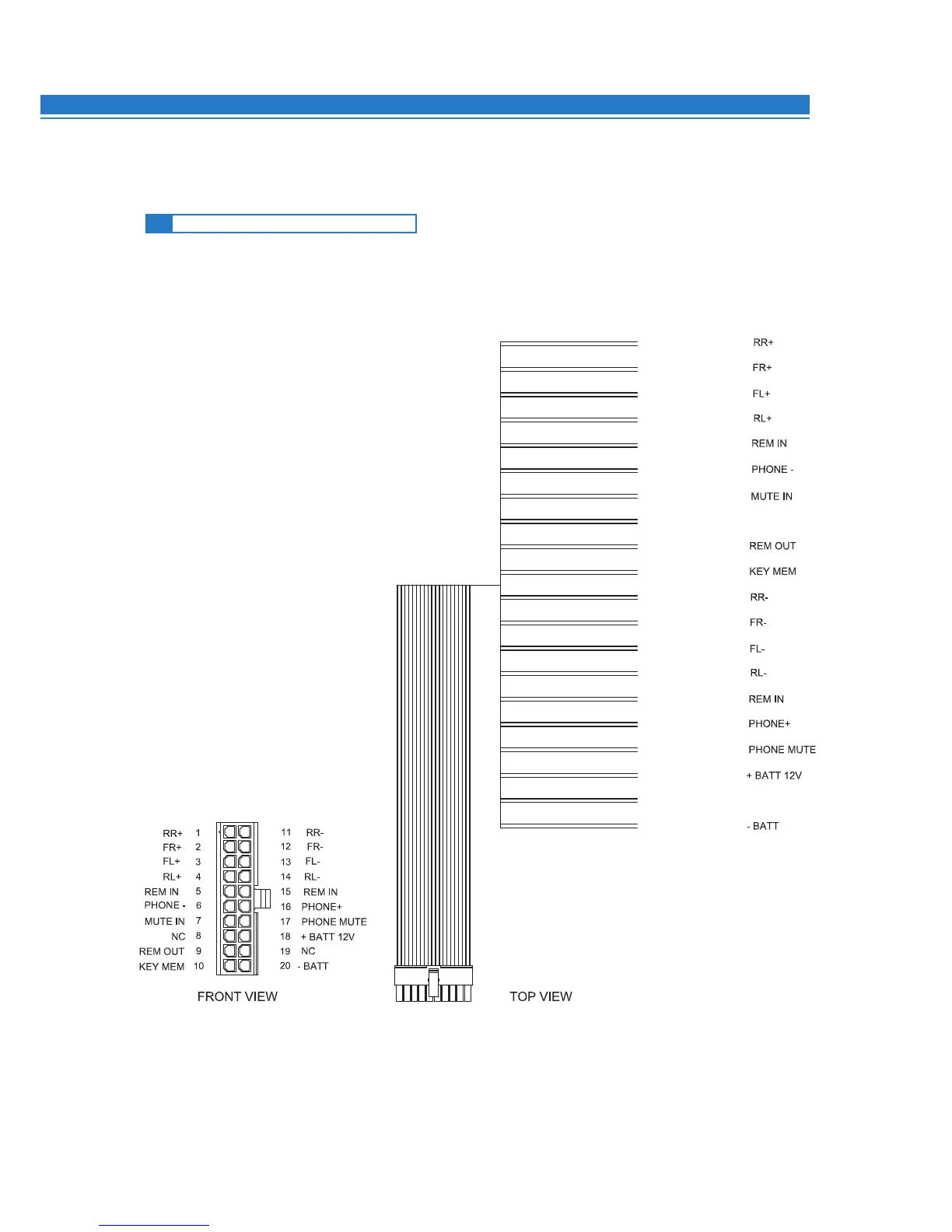

The bit Ten comes with a 20 multipolar interface for input signals, power supply and various control
connections.
4.1 MULTIPOLAR CONNECTOR
4. CONNECTION PANELS – DESCRIPTION
4
1: violet
2: gray
3: white
4: green
5: red
6: pink
7: brown
8: N.C.
9: blue
10: cyan (light blue)
11: violet
12: gray
13: white
14: green
15: red
16: pink
17: orange
18: yellow
19: N.C.
20: black
