Audio bit Ten - Low-Level and Phone Input Connections; Low-Level Input Signal Connections

ADVANCED MANUAL / bit Ten /
11

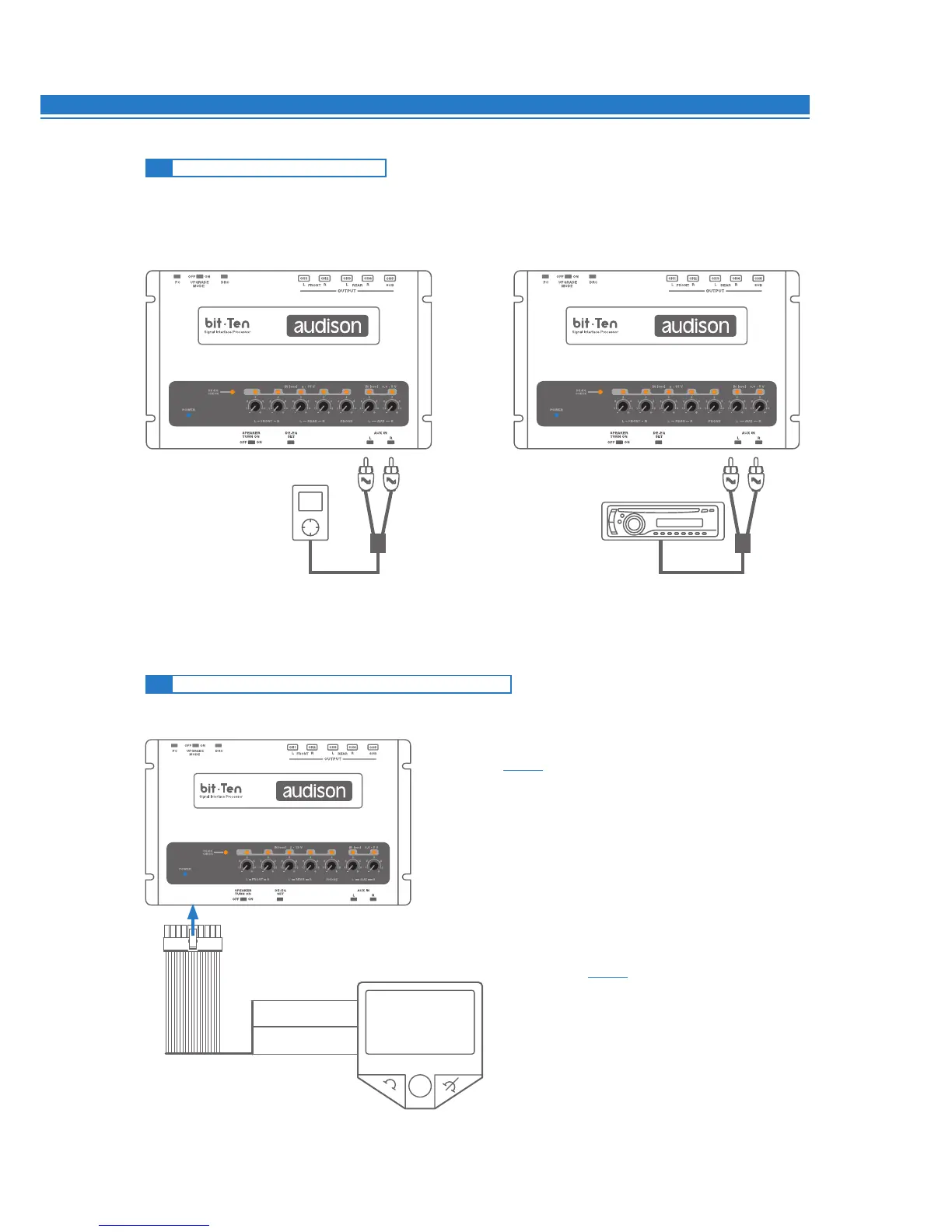

5.5 LOW-LEVEL INPUT SIGNALS
5.6 CONNECTION WITH HANDS-FREE PHONE KIT
PHONE +/- Input compatible with the hands-free kit speaker
output
(see 4.2.3).
Sensitivity adjustable from 2 to 15 V RMS.
PHONE MUTE: bit Ten ON. This gives priority to the phone
conversation, allowing you to resume audio reproduction
when the phone call is finished.
PHONE MUTE: bit Ten OFF. This turns the bit Ten on.
When a phone call is received, the ring tone is audible after
around 5 seconds. Once the phone call is finished, the bit Ten
turns off.
Nota: The PHONE MUTE terminal can be used to enable
the AUX IN input
(see 8.6.5). In this case the user won’t be
able to interface with the hands-free kit through the bit
Ten.
AUX IN L/R: Auxiliary analog stereo signal.
Sensitivity is adjustable from 0.6 to 5 V RMS.
5
AUXILIARY STEREO
PREAMPLIFIER SOURCE
AUXILIARY STEREO
PREAMPLIFIER SOURCE
Pink: PHONE +
Orange: PHONE MUTE
Pink: PHONE -
01234...
CALL
MP3 PLAYER
PRE OUT
RADIO DECK
