AudioArts Lightning / June 2018
INSTALLATION AND POWER
page 1 – 7
RJ-45 HDPN OUT and HDPN PRE are balanced line level stereo post and pre fader
outputs.
Four PGM 1-4 OUT RJ-45 are balanced line level stereo Program 1-4 outputs.
RJ-45 CR OUT is balanced line level stereo Control Room output.
RJ-45 STU OUT and STU PRE are balanced line level stereo post and pre fader
Studio outputs.
RJ-45 TALLY is provided to hook up an interface to an Air Tally light. This output
comes from a set of relay contacts and is designed to switch a low DC voltage (30 VDC
maximum) at a moderately low current (2 ADC maximum) to activate a DC light, or to
activate an external DC relay which can then be used to activate an AC operated light.
Never bring AC power into the console on this or any other connector.

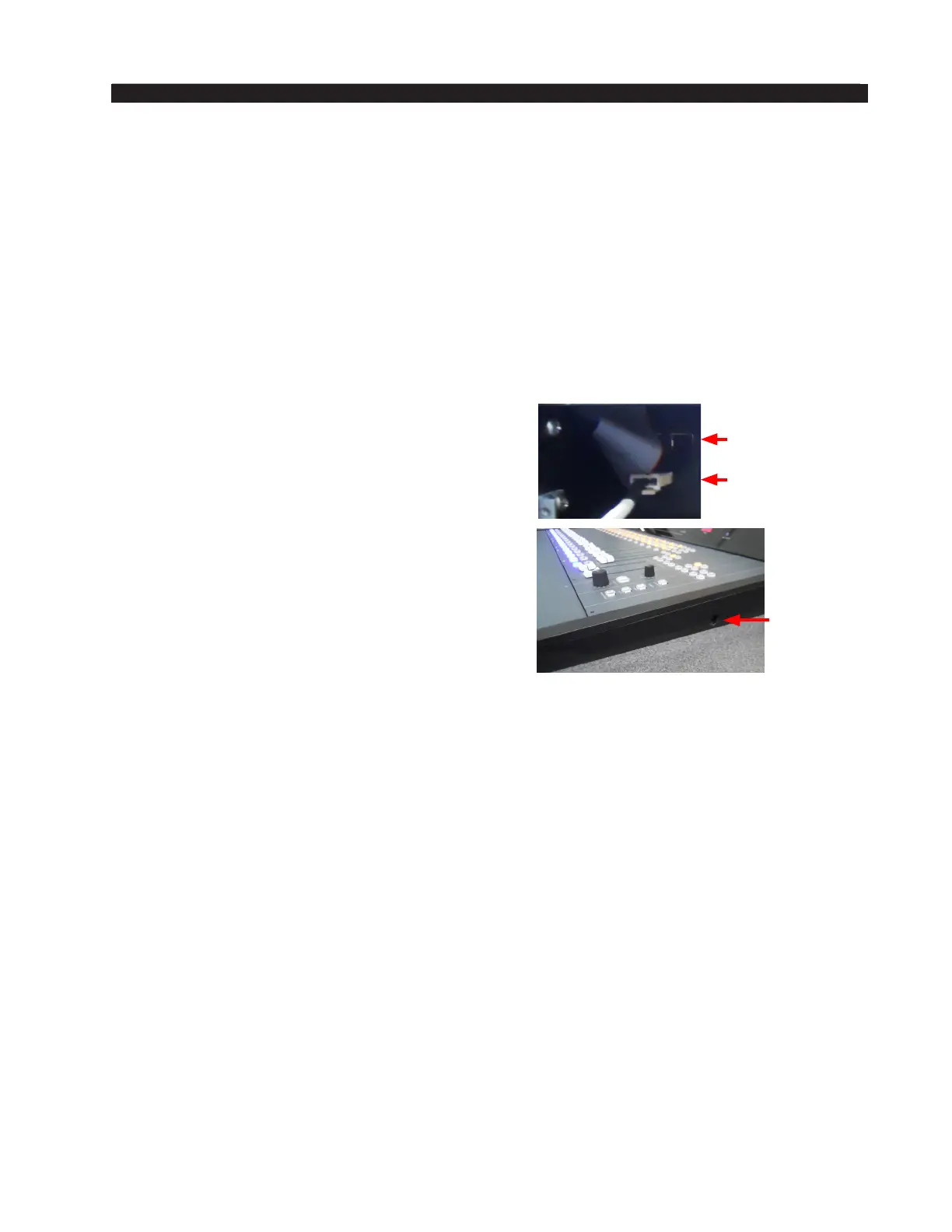

Power
USB
Headphone
Jack
Two USB type B connectors are provided to
bring in and send audio through a USB connection
to a computer.
A 3-Circuit Header is provided to accept console
power from the external power supply.
One TRS jack is provided on the right side of
the console frame for the operator to plug in a set of
headphones. This is wired as a standard headphone
jack, with the left signal on the tip, the right signal
on the ring, and the sleeve connected to ground.
