INSTALLATION AND POWER
page 1 – 8

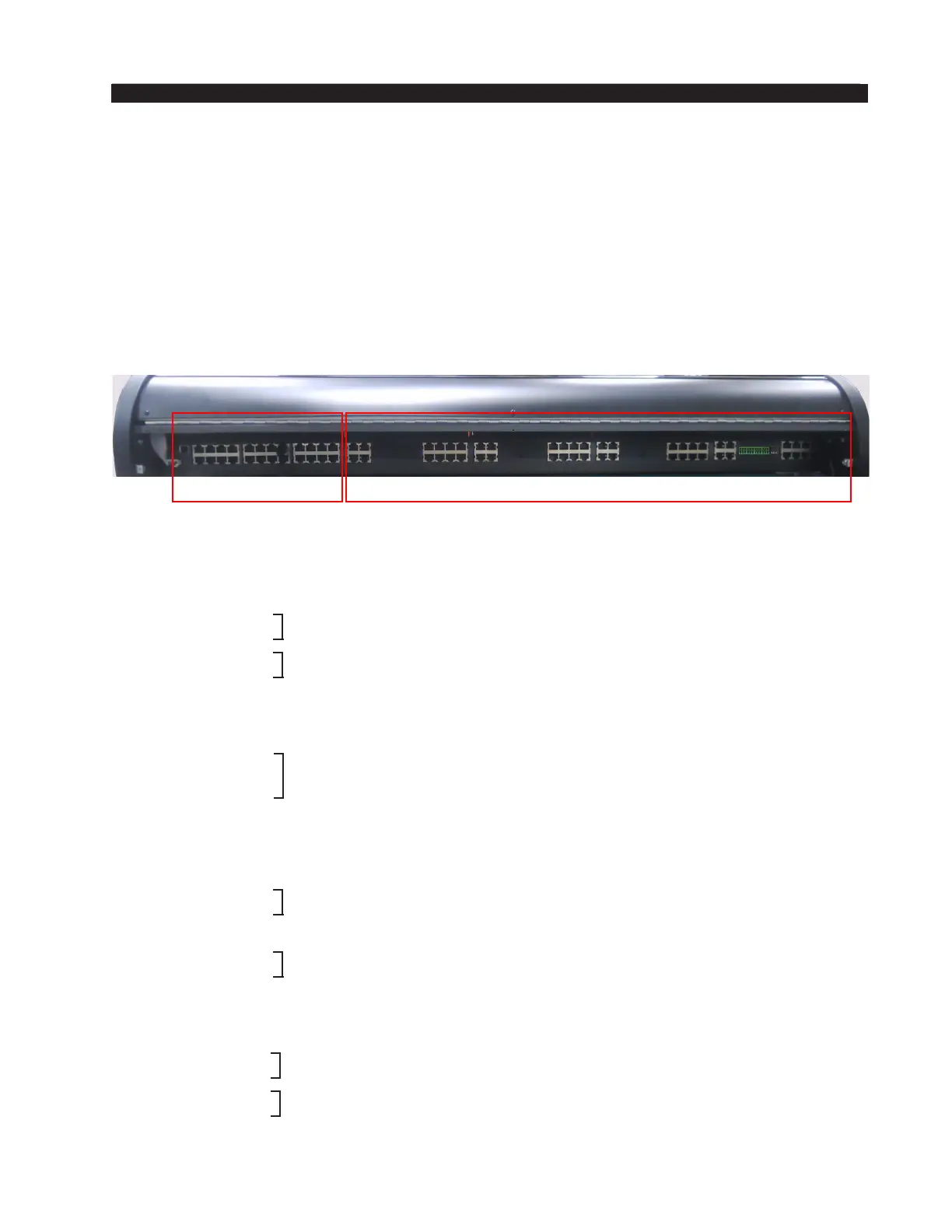

Hook-Ups
The rear of the console has multiple RJ-45 connectors to plug in stereo line inputs, the
external inputs, caller connections to and from hybrid, a Bluetooth connection, as well as
providing studios, control room, microphones, PGM, and USB analog output connections.
A four mic preamp card is available for mono mic level signals via four 3-position
plug terminals.
Two USB port with type B connectors available for interfacing with a computer (see
page 2-4 for details).
Pinouts drawings on pages 1-12 and 1-13 show all wiring connection at glance.
LINE INPUT LT
LINE INPUT RT
These connections are to the inputs
of four internal mic preamplifiers. The
outputs of the MIC1-MIC4 preamplifier
are internally wired to the Input dipswitch.
See page 2-15 for details.
CALLER IN
CALLER OUT
EXT LT IN
EXT RT IN
MASTER PANEL INPUT PANELS
Audio Connections
Analog Stereo Inputs – RJ-45 (Input Panel)
The signals are analog stereo; balanced.
Pin 1 – HI
Pin 2 – LO
Pin 3 – HI
Pin 6 – LO
MIC 1 - MIC 4 Inputs – 3-position Plug Terminal
All signals are analog mono. The mic input level is normally -50dBu balanced.
Pin 1 – SH
Pin 2 – LO MIC IN
Pin 3 – HI
Caller 1 & 2 In/Out – RJ-45
Signals is analog mono; balanced.
Pin 1 – HI
Pin 2 – LO
Pin 1 – HI
Pin 2 – LO
EXT 1 & 2 Input – RJ-45
Signals is analog stereo; balanced.
Pin 1 – HI
Pin 2 – LO
Pin 3 – HI
Pin 6 – LO
