INSTALLATION AND POWER
page 1 – 12

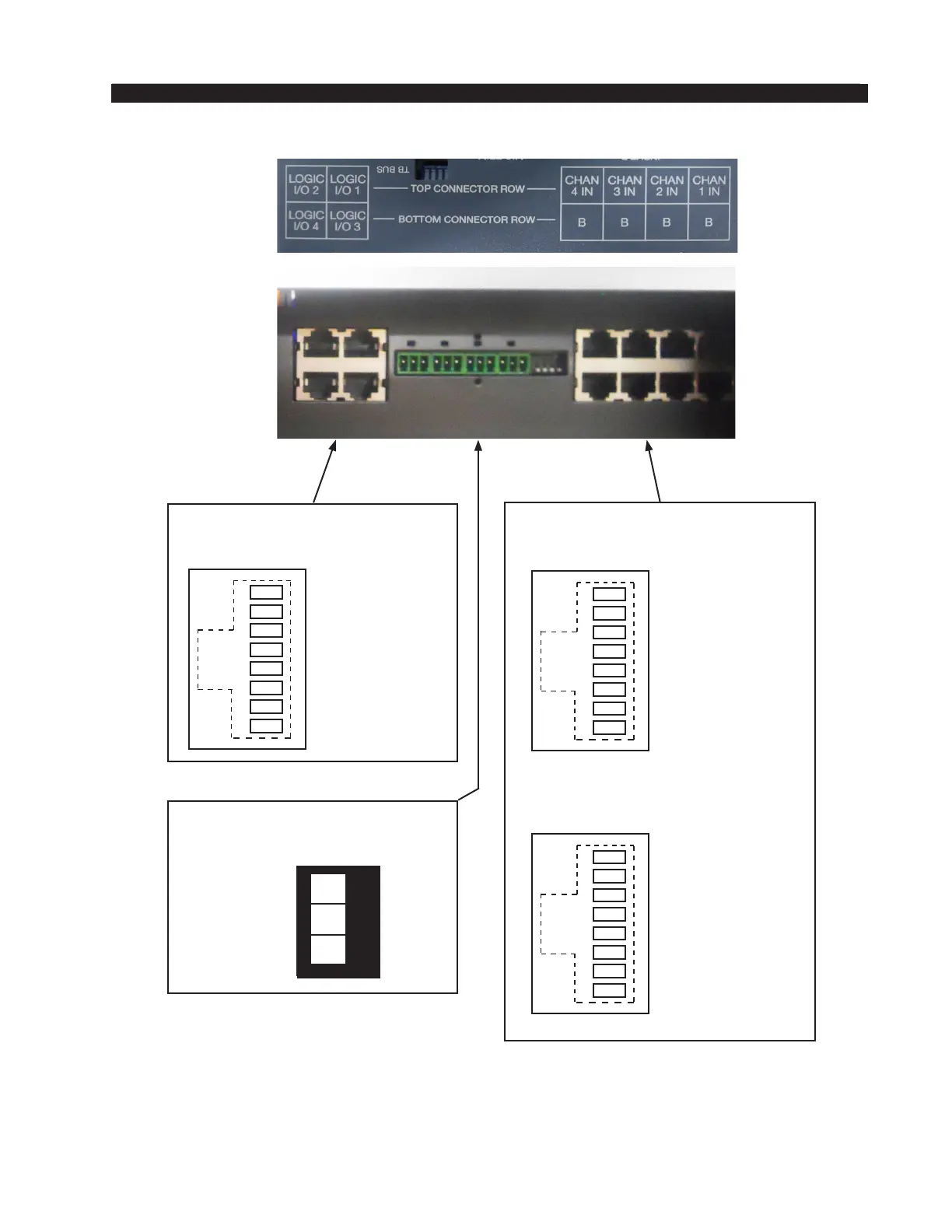

Input Panel - Audio and Control Connections
1
2
3
4
5
6
7
8
DIGITAL GROUND
START
1
2
3
4
5
6
7
8
REMOTE ON
REMOTE OFF
LOGIC I/O
CHANNEL A IN 1 - 4
1-4
TOP ROW
+5V DIGITAL
LINE A LT IN HI
LINE A LT IN LO
LINE A RT IN LO
LINE A RT IN HI
1
2
3
4
5
6
7
8
CHANNEL B IN 1 - 4
BOTTOM ROW
LINE B LT IN HI
LINE B LT IN LO
LINE B RT IN LO
LINE B RT IN HI
3-Pos. Plug Terminal
MIC IN SH
MIC IN LO
MIC IN HI
1
2
3
MIC IN 1 - 4
