5.5 Step 5: Configure the IP Groups
This step describes how to create IP groups. Each IP group represents a SIP entity in
the device's network. Create IP groups for:
1. PAETEC SIP Trunk
2. Lync Server 2010 – Mediation Server
These IP groups are later used by the IP2IP application for routing calls.
¾ To configure IP Groups:
1. Open the 'IP Group Table' page (Configuration tab > VoIP menu > Control
Network> IP Group Table).

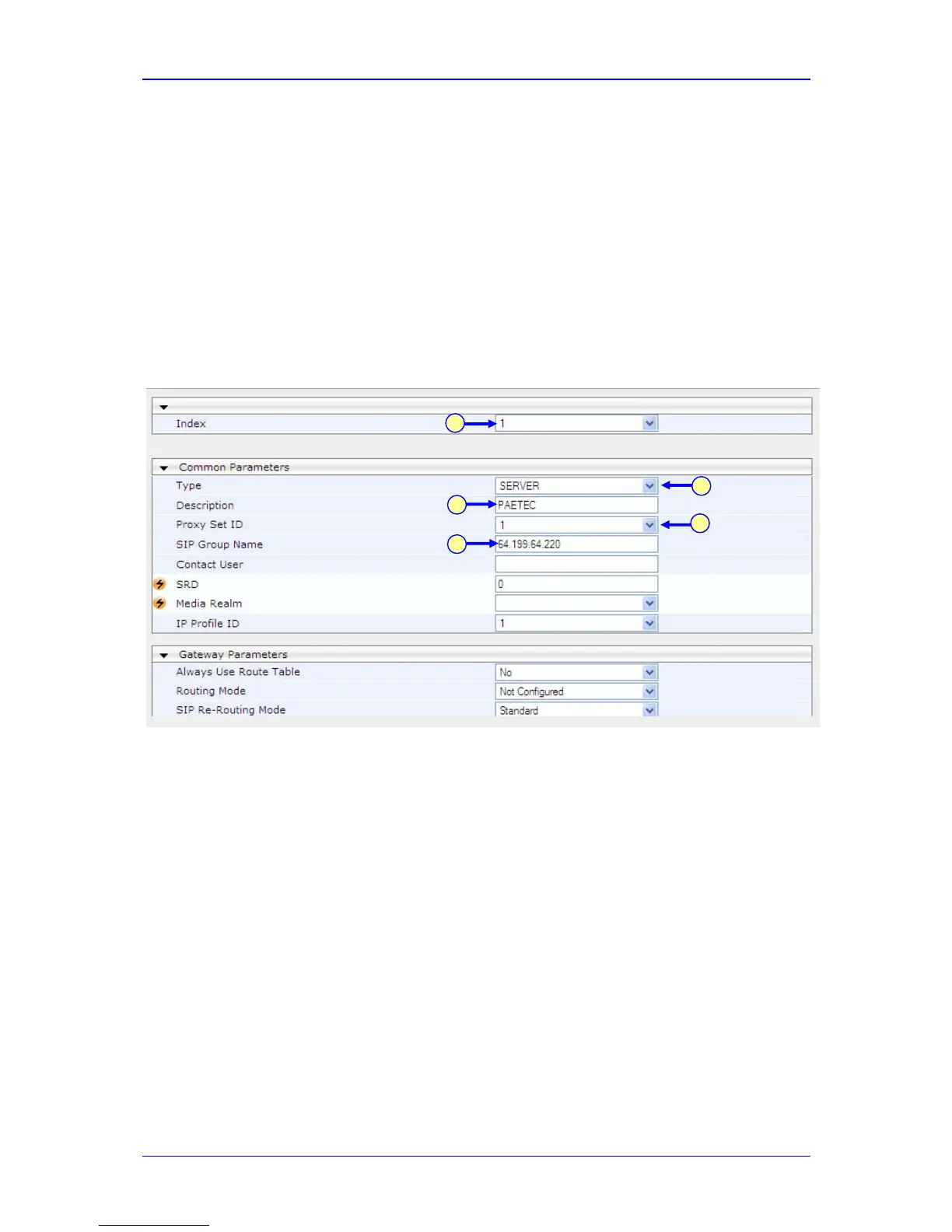

Figure
5-14: IP Group – for PAETEC Server
2. Define an IP Group for the PAETEC SIP Trunk as follows:
a. IP Group Index ‘1’
b. Type: “SERVER”
c. Description: arbitrary name. (e.g., “PAETEC”)
d. Proxy Set ID: “1” (represents the IP address, configured in Section
5.4 on
page 45, for communic
ating with this IP Group).
e. SIP Group Name: The SIP Request-URI host name used in INVITE
messages sent to the IP Group, or the host name in the From header of
INVITE messages received from the IP Group. Enter the WAN IP address.
2a
2b
2c
2d
2e
