3. Physical Description
MP-524 & MP-532
- 10 -
3.3 Rear Panel Description
The device's rear panel is shown in the figure below and described in the subsequent table.

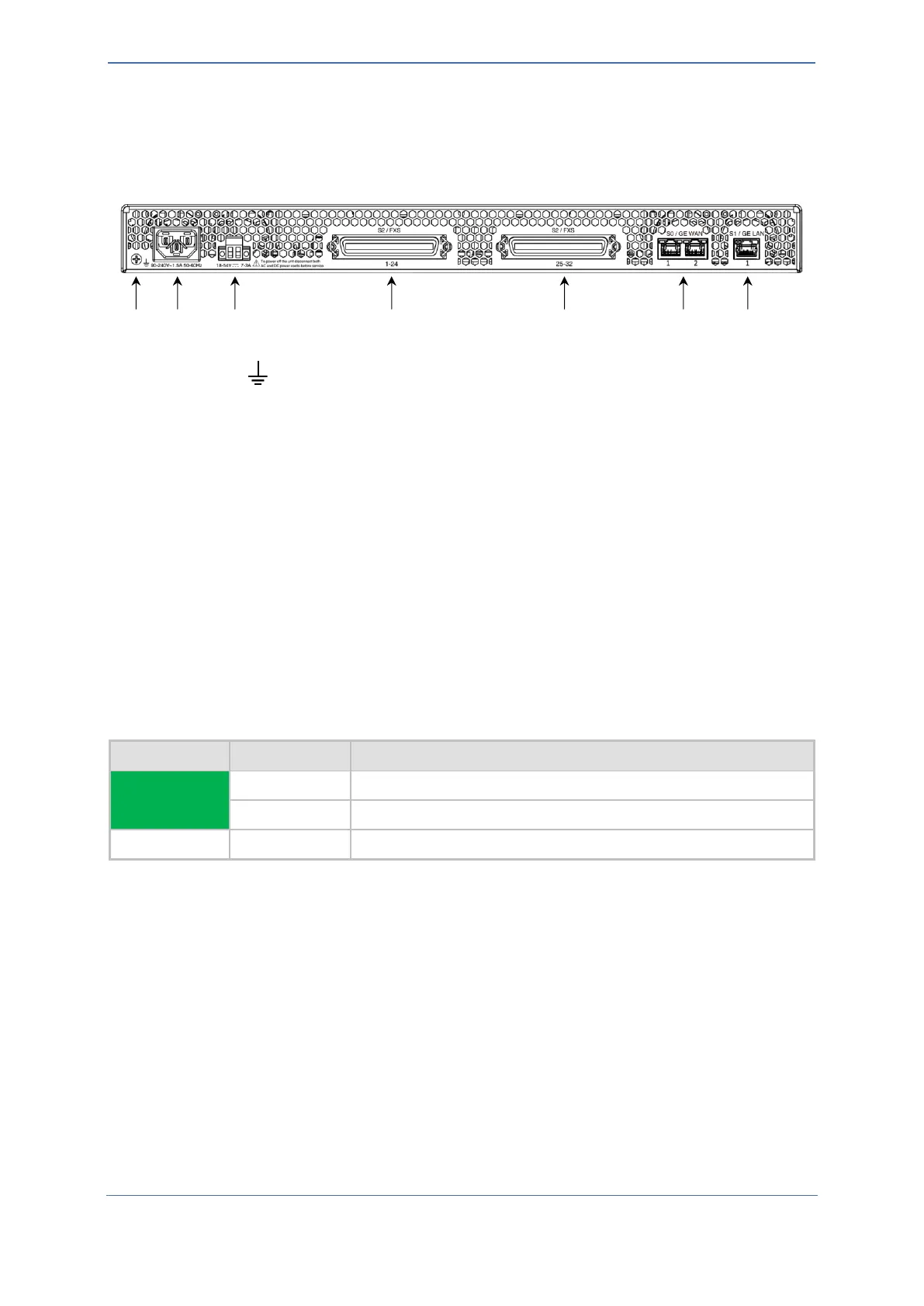

Figure 2: Rear Panel (e.g., MP-532)
1
Protective earthing (grounding) screw.
2
90-240V
~
1.5A 50-60Hz
AC power inlet.
3
18-54V 7-3A
DC power input.
4
S2 / FXS
50-Pin D-Sub female connector for FXS ports 1-24.
5
S2 / FXS
50-Pin D-Sub female connector for FXS ports 25-32.
Note: This connector is available only on MP-532.
6
S0 / GE WAN
Two Gigabit Ethernet (GbE) ports (RJ-45) for WAN copper interfaces.
7
S1 / GE LAN
GbE (10/100/1000Base-T) port (RJ-45) for LAN interface.
3.3.1 WAN LED Description
The WAN ports on the rear panel provide LEDs that indicate the status of the WAN interface.
Table 8: WAN Port LED Description
LED Color
LED State
Description
Green
On
WAN GE link established.
Flashing
Data is being received or transmitted.
-
Off
No WAN GE link or power not received by the device.
