MP-524 & MP-532
- 32 -

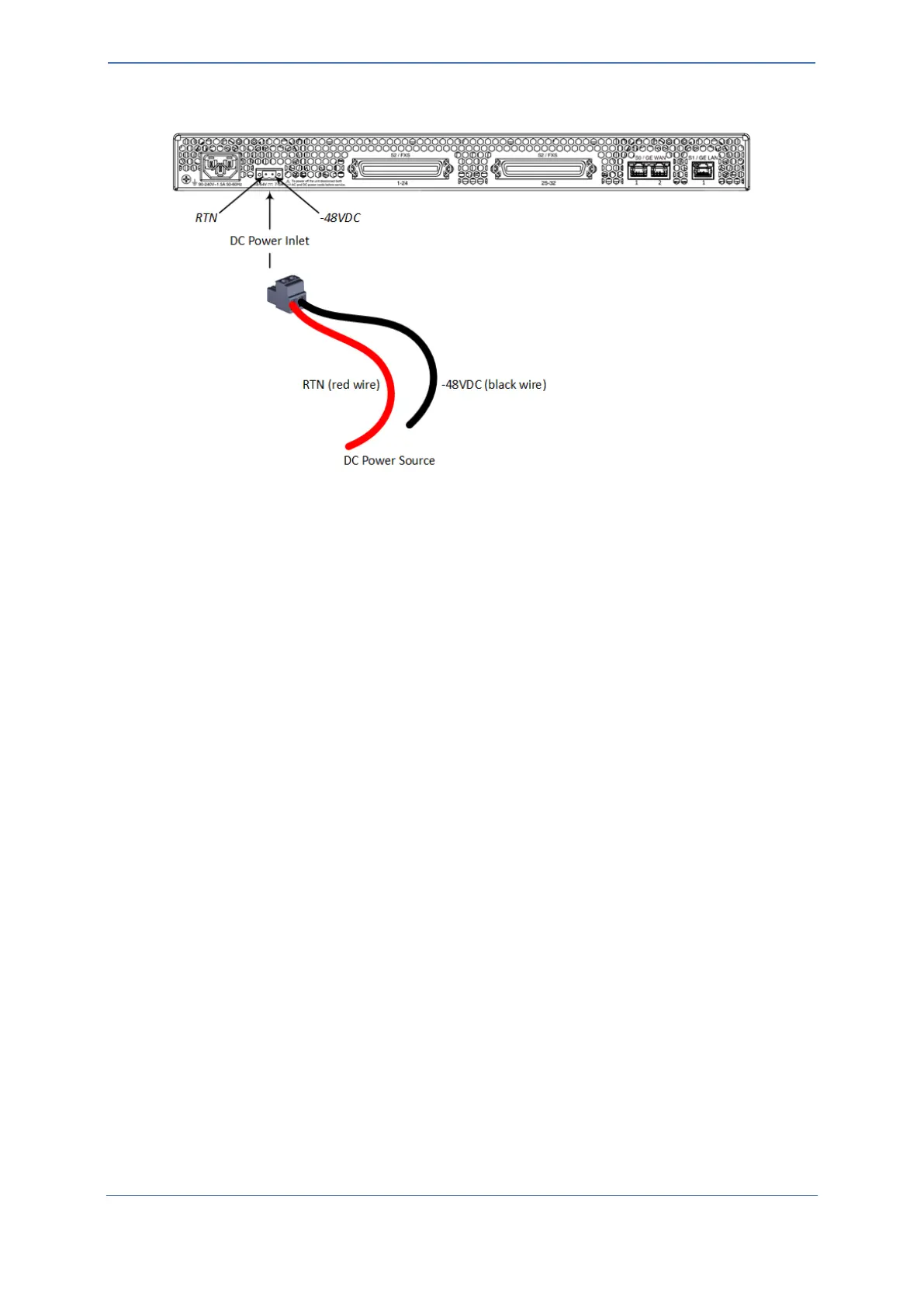

Figure 27: Connecting Terminal Block to DC Inlet
2. Connect the DC power leads to a 48-VDC power source.
