AudioControl ARCHITECT MODEL 2660 User Manual

22
23
Installation Manual
Model 2660
ARCHITECT
™

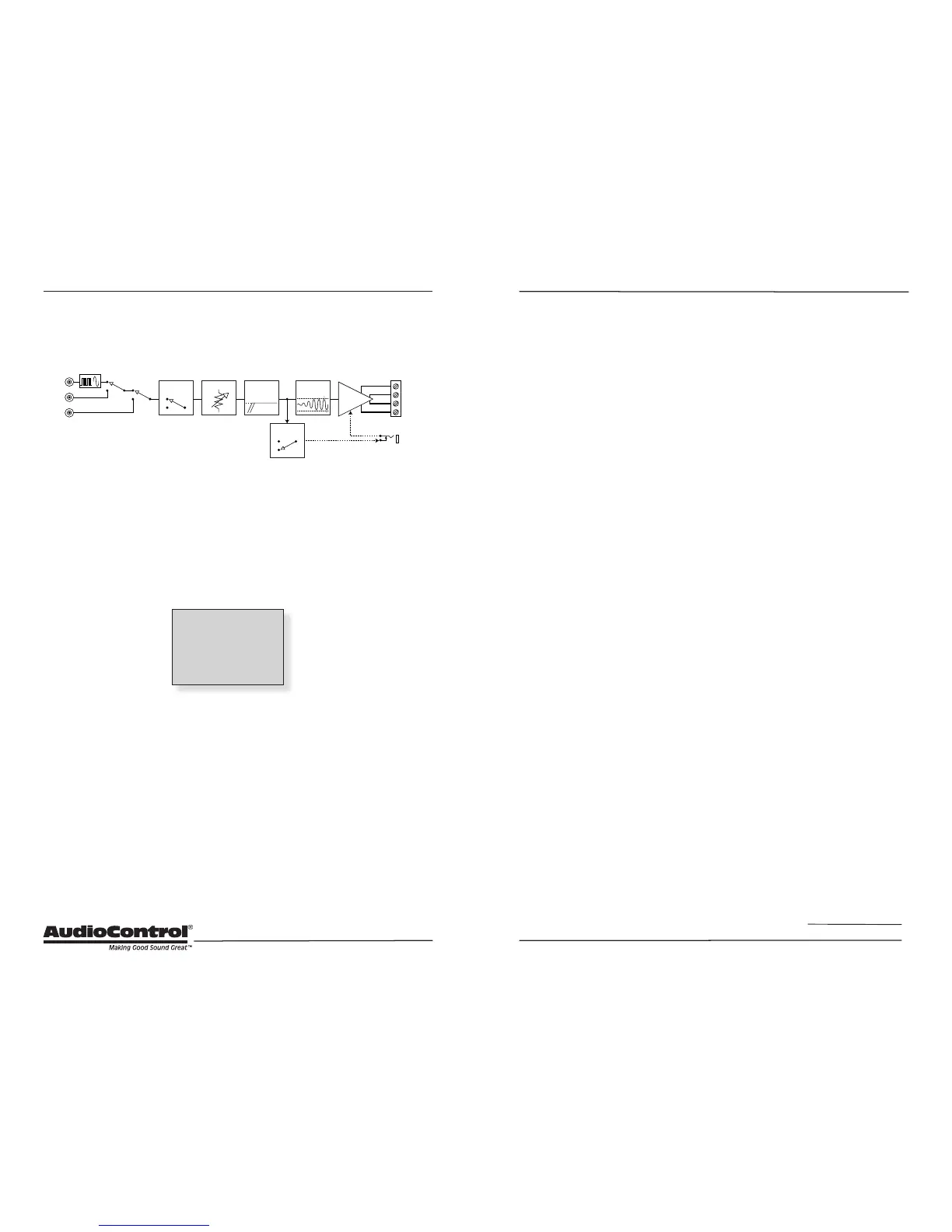

Simplied Block Diagram
More Simplied Block Diagram
INPUTS
BUS A
Local
12V
Trigger
LOCAL
/BUS
BUS
A/B
Signal
Sense
Mono/
Stereo
Level PFM
Subsonic
LOCAL
BUS B
DAC
LightDrive
Anti-Clipping
Amplifiers
Speaker
Outputs
A2660 Simplified block diagram 2014 DEC 16
Block Diagrams continued
In Out
Power
Specications
Specications
Output Power
Per Channel .............................................. 65 Watts @ 8 Ohm, 100 Watts @ 4 Ohm
Bridged Mono ........................................................................... 175 Watts @ 8 Ohm
Signal to Noise Ratio ........................................................... > 105 (A wtd, ref full output)
Crosstalk ............................................................................................... > 80 dB @ 1 kHz
Damping Factor ..................................................................................................... > 200
Gain ....................................................................................................................... 27 dB
Analog Input Sensitivity ....................................1 Vrms for full output, level at maximum
DAC Specications .......................................... 32 – 192 kHz sample rate, 16/24 bit depth
AC Power Requirements
Standby .................................................................................................... 0.4 Watts
Idle ............................................................................................................ 30 Watts
1/8th power (loud listening level) ..............................................................217 Watts
Full Power ...............................................................................................1300 Watts
BTU/hr Output
Standby .................................................................................................. 1.4 BTU/hr
Idle .......................................................................................................... 92 BTU/hr
1/8 power (loud listening level) .............................................................. 297 BTU/hr
Full Power .............................................................................................. 890 BTU/hr
Dimensions
Height ....................................................................................................... 3.5” (2U)
Width (ears on) ................................................................................................19.0”
Width (ears o) ................................................................................................ 17.0”
Depth .............................................................................................................. 15.5”
Weight ............................................................................................................ 16 lbs
Please note: Because of AudioControl’s bold and daring quest to push back the frontiers of
audio perfection, all specications are subject to change without notice, and at any time,
including (and not limited to) lunchtime, teatime, or when our engineers run around the
factory shouting “Eureka!”
