Installation Manual
Model 2660
ARCHITECT
™
Complimentary bullet points
Features continued

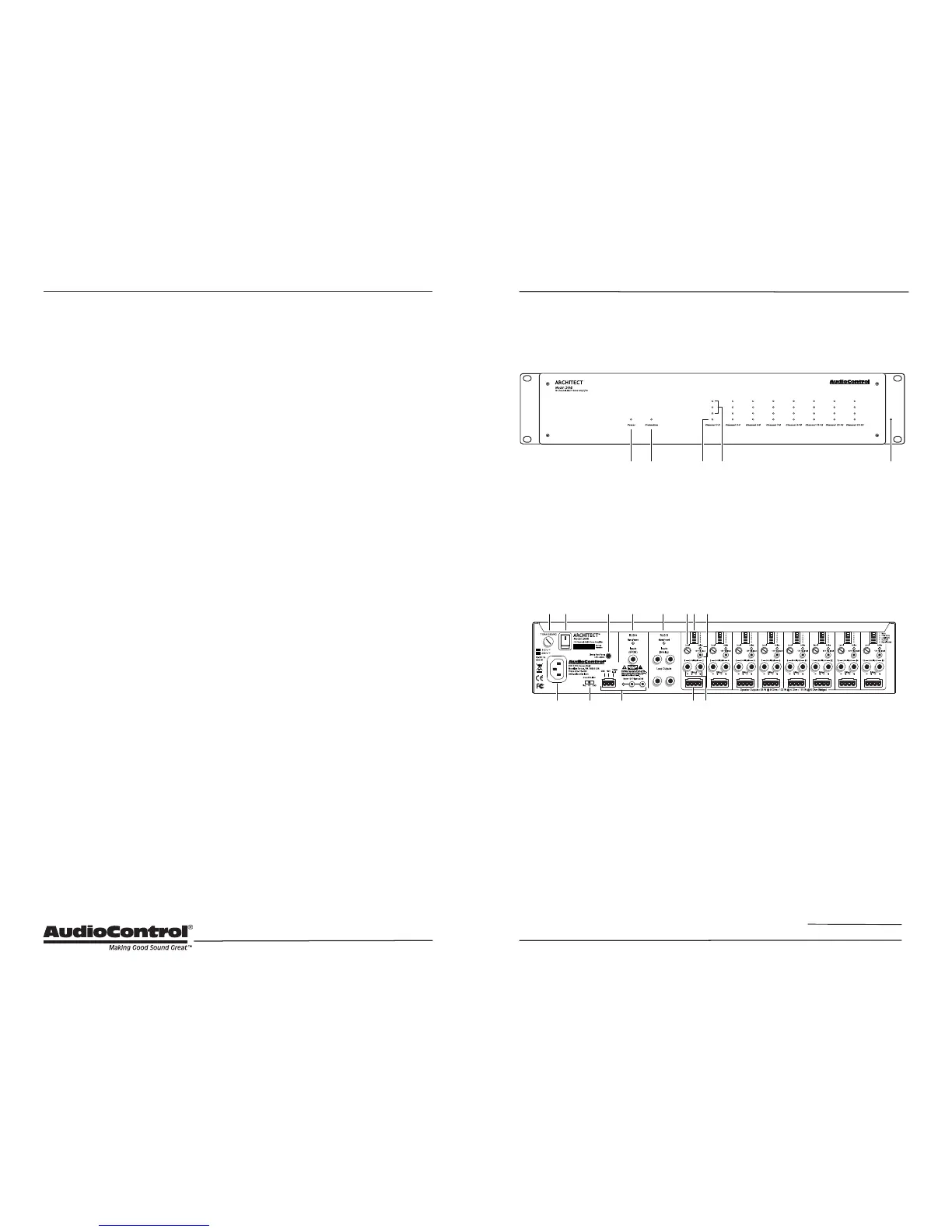

Quick View
Quick View
Front Panel
4. Zone Level LED Ladder
5. Rack Mount Ears
Rear Panel
9. Zone Level Control
10. DIP Switches
1 Mono/Stereo
2 PFM 40 Hz
3 Local/Bus
4 Bus A/B
5 Signal Sense
11. 12V Local Trigger
12. Local Analog Inputs
13. Speaker Outputs
6 13121 4
72 3 5 8 910 11
1 2 3 54
• 16 channels of AudioControl
amplication
• Ecient power ampliers and power
supplies
• Power consumption is less than 0.5
Watts in standby
• Rack mountable 2U form factor
• Removable rack ears
• Light weight (16 lbs)
• Stackable with other Architect Model
2660 and Director Matrix M6400 models
• Signal sense independent for each zone
• Bus assignment independent for each
zone
• 40 Hz infrasonic lter independent for
each zone
• 12V Trigger independent for each zone,
usable with contact closure or 12V
external source
• 12V Master trigger
• BUS A S/PDIF input with premium
Wolfson digital to analog converter
• BUS B analog input pair with loop-
through outputs
1. AC Input
2. AC Fuse
3. AC Power Switch
4. Ground Isolation Switch
5. Disable Front Panel LED Ladders
6. Master Trigger
7. BUS A Digital Input
8. BUS B Analog Input and Loop
Output
1. Power LED
2. Protection LED
3. Zone Status LED
