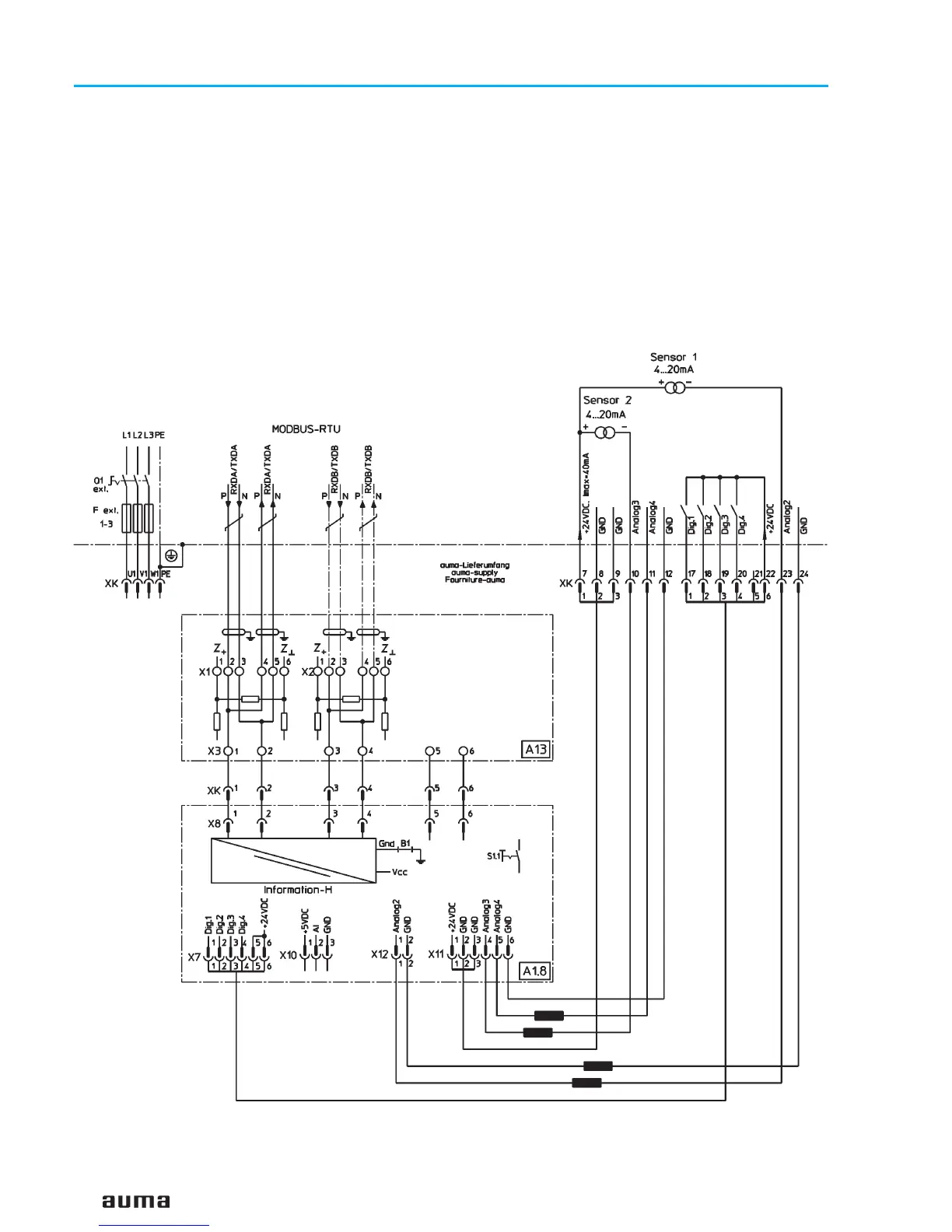

17. Appendix B Proposed external wiring diagram
Digital and analogue inputs are optional.
The two analogue customer connections (AI 3/4 and AI 2) as well as the
four digital customer inputs (Dig 1 ...4) are only provided (wired) by the
factory if explicitly mentioned in the order.
The 5th digit of the MSP number (refer to name plate) indicates if analogue
connections are available.
If the 5th digit is assigned to ‘0’, no external connections are available.
If the 5th digit is assigned to ‘L’, the connections are provided.
54
Actuator controls AUMA MATIC AM/ AMExB/ AMExC
Modbus Operation instructions
Connection of external sensors, 2-wire technology
