4. Description of the data interface
4.1. Input data (process representation input) – signals
The process representation input allows the master (controls) to read the state of
the slave (actuator).

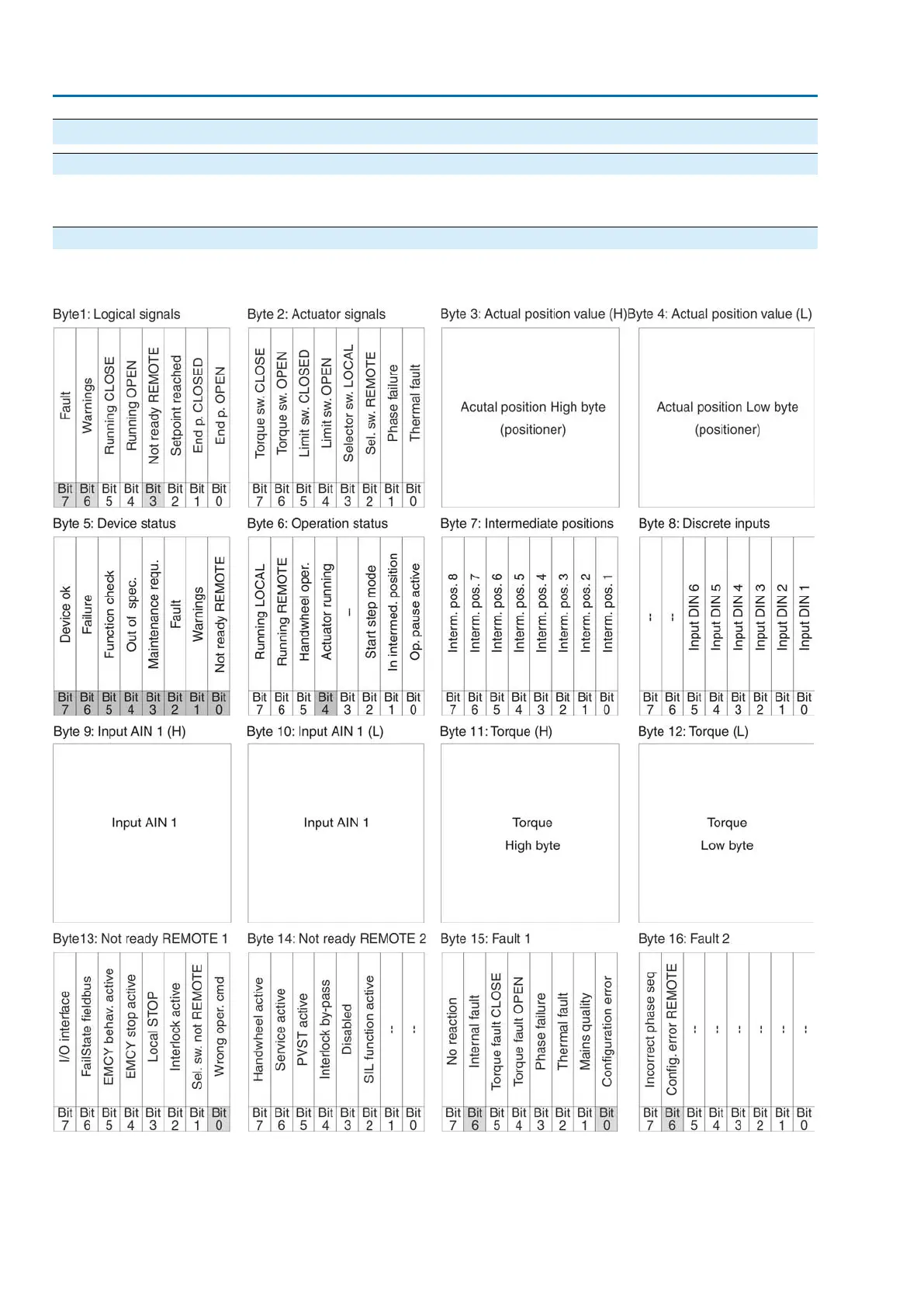

4.1.1. Process representation input (default process representation)
Grey bits are collective signals.They contain the results of a disjunction (OR
operation) of other information.
