6. Fasten screws crosswise to a torque according to table.
Table 11:
Tightening torques for screws
Tightening torque [Nm]Threads
Strength class A2-80/A4–80
10M6
24M8
48M10
82M12
200M16
392M20
4.5. Accessories for assembly
4.5.1. Stem protection tube for rising valve stem

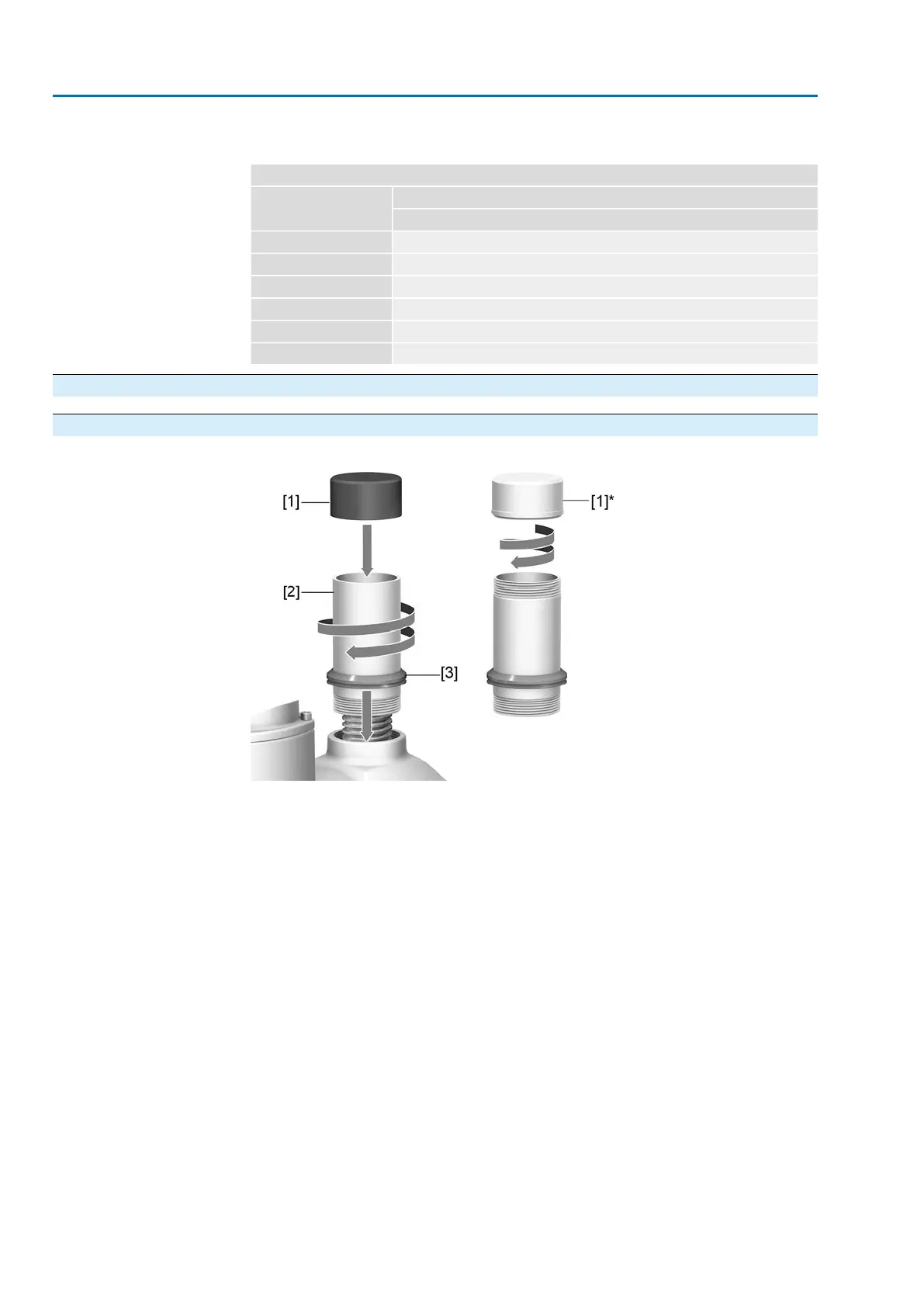

Figure 15: Assembly of the stem protection tube
[1] Protective cap for stem protection tube (fitted)
[1]* Option: Protective cap made of steel (screwed)
[2] Stem protection tube
[3] V-seal
Procedure
1. Seal all threads with hemp, Teflon tape, or thread sealing material.
22
