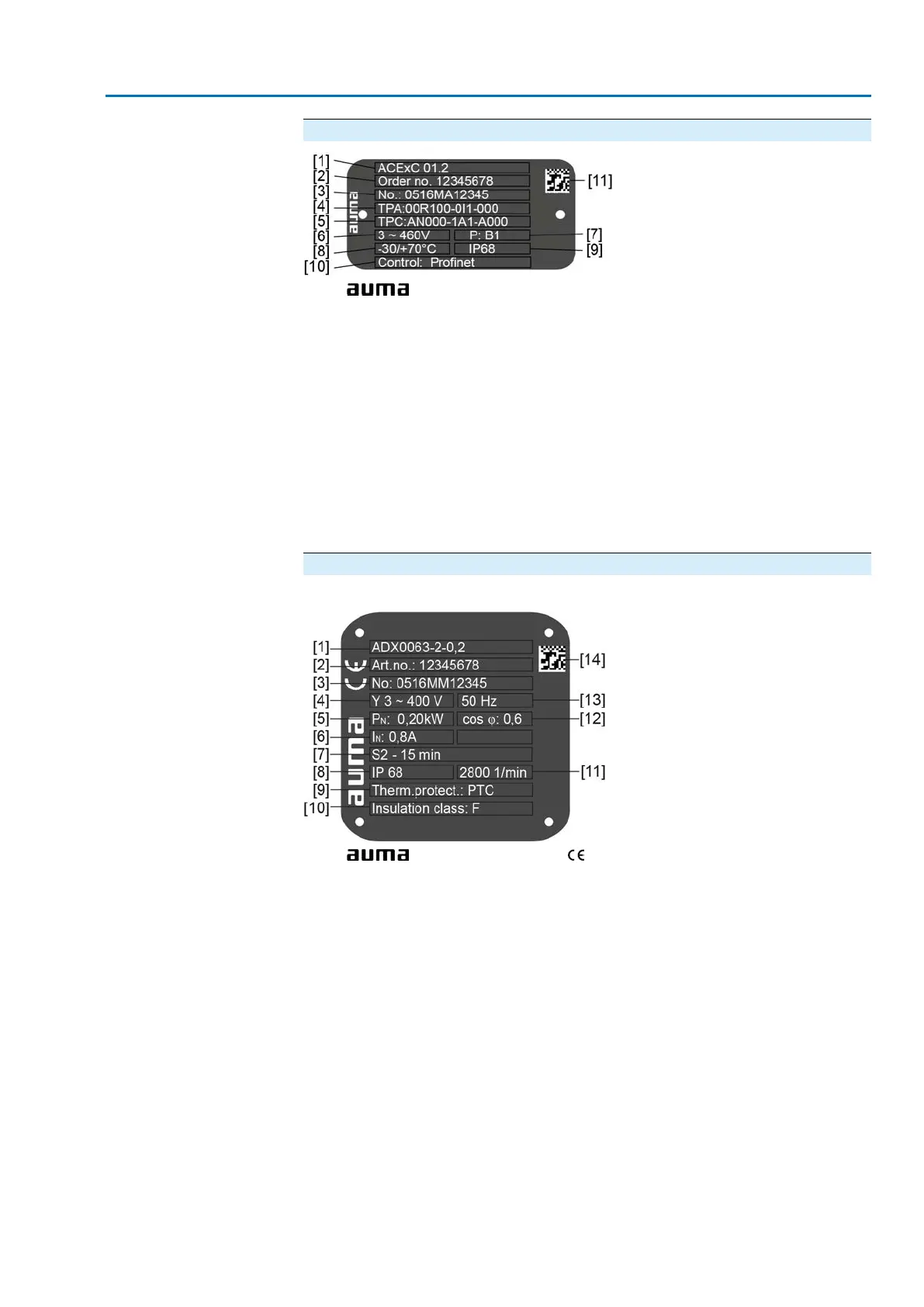

Actuator controls name plate

(= manufacturer logo)

[1] Type designation

[2] Order number

[3] Serial number

[4] Actuator terminal plan

[5] Actuator controls terminal plan

[6] Mains voltage

[7] AUMA power class for switchgear

[8] Permissible ambient temperature

[9] Enclosure protection

[10] Control

[11] Data Matrix code

Motor name plate

Figure 3: Motor name plate (example)

(= manufacturer logo); (= CE mark)

[1] Motor type

[2] Motor article number

[3] Serial number

[4] Current type, mains voltage

[5] Rated power

[6] Rated current

[7] Type of duty

[8] Enclosure protection

[9] Motor protection (temperature protection)

[10] Insulation class

[11] Speed

[12] Power factor cos phi

[13] Mains frequency

[14] Data Matrix code
