AUMA SIMA 2 - Page 15

Table 5:
Legend
165.1 mm[1]
76.2 mm[2]
465 mm[3]
483 mm[4]
Connection for 110 – 240 V AC +/–10 %, 50/60 Hz +/–10 %[5]
Connection for 24 V DC (option)[6]

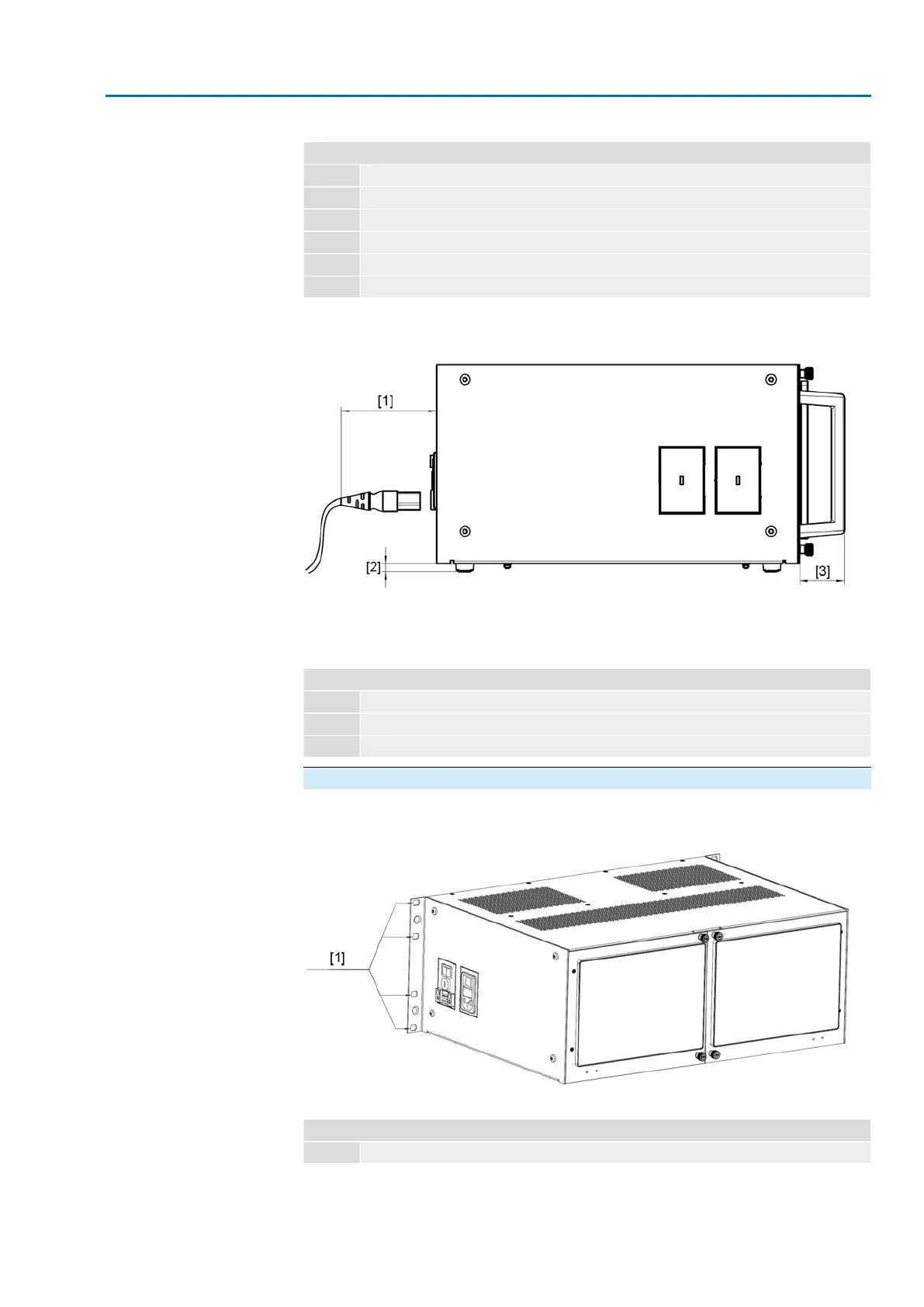

Figure 11: SIMA² bench device (standard housing with stands and handles), side
view
Table 6:
Legend
85 mm[1]
7.2 mm[2]
40 mm[3]
Wall mounting
Figure 12: SIMA² wall mounting
Table 7:
Legend
Mounting bores[1]
15
SIMA² Master Station
MODBUS RTU, MODBUS TCP/IP to DCS Assembly
