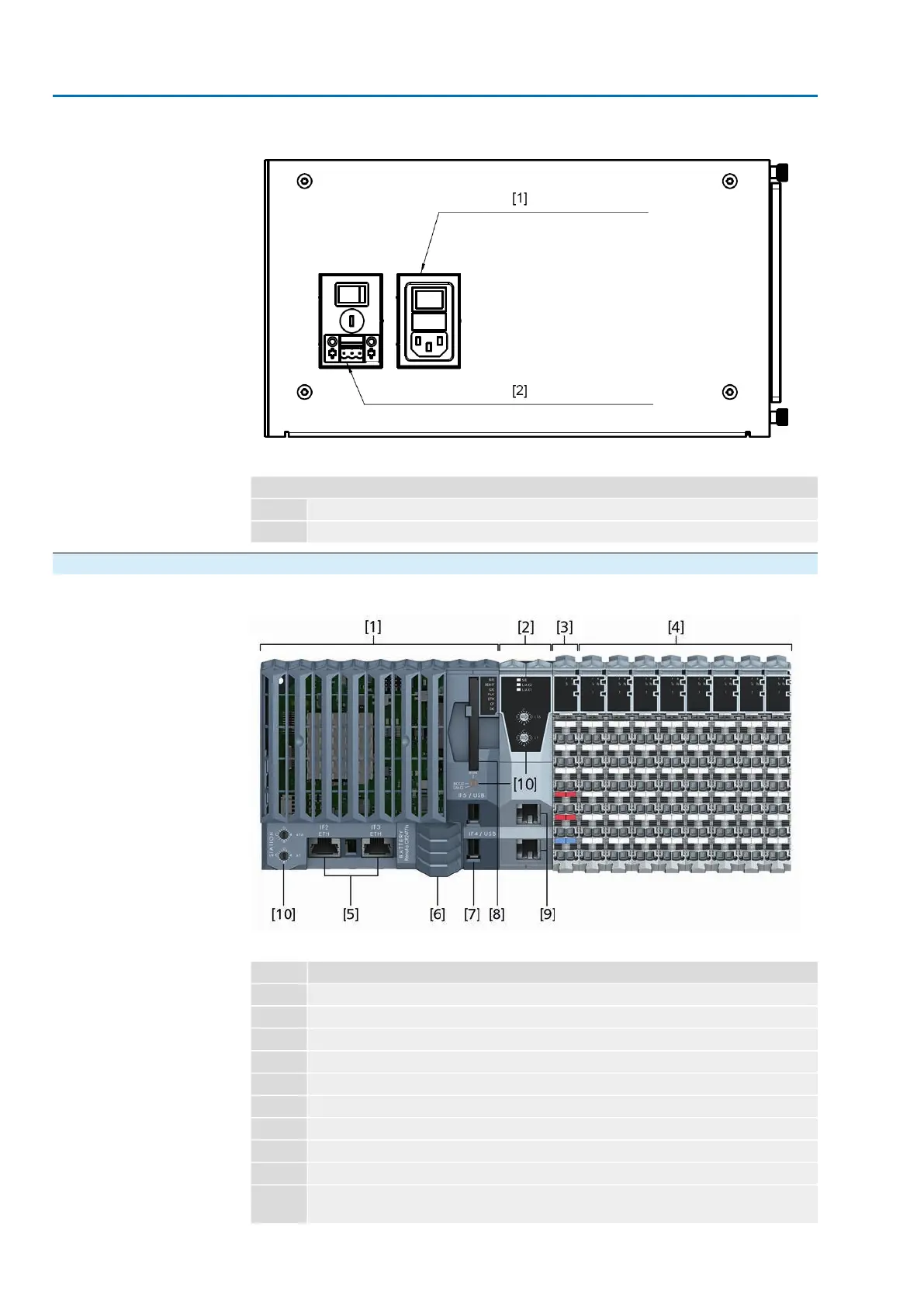

Figure 13: SIMA² wall mounting, side view
Table 8:
Legend
Connection for 110 – 240 V AC +/–10 %, 50/60 Hz +/–10 %[1]
Connection for 24 V DC (option)[2]
4.3. SIMA² system components
Figure 14: Overview system components (example)
Table 9:
DescriptionNo.
CPU1
Additional IEEE 802.3 module (depending on the configuration)2
Power supply3
Further interfaces like communication interfaces or I/O interfaces4
2x IEEE 802.3 ports5
Battery housing6
2 x USB ports (not appropriate for mouse and keyboard)7
CF card with SIMA² software8
2x IEEE 802.3 ports9
Operation mode switch
Factory set, must not be modified!
10
16
SIMA² Master Station
Assembly MODBUS RTU, MODBUS TCP/IP to DCS
