11. Installation
AURATON 2020 TX RX Plus
Auraton 2020 TX is a wireless controller. It means
that it (TX - transmitter) communicates with heating
device throught receiver (RX - reciver) by radio
waves. Installation is limited to connection of
receiver with controlled device only.
The only installation operation includes connection
of the AURATON 2020 RX Plus receiver to the
executing device (e.g. a furnace).
11.1 Cable connection to AURATON 2020
RX Plus
Note: During installation of the RX controller the
power supply should be switched off.
It is recommended to charge a specialist company
with the RX installation.
The cable terminals are located at the rear RX
controller wall.
There are three terminals, marked by COM, NO,
and NC. This is a typical unipolar two-state relay. In
most cases the NC terminal remains unused.
NO
COM
NC
NO
COM
NC

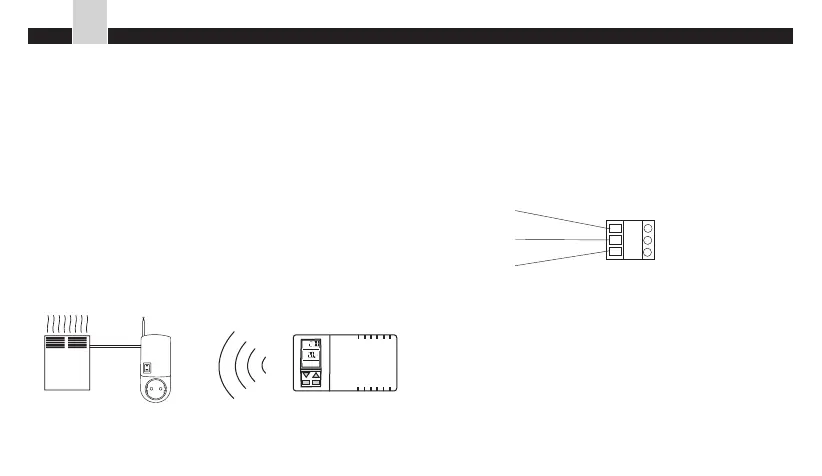

heating
device
AURATON
2020 RX Plus
AURATON
2020 TX Plus
receiver radio
signal
transmitter,
temperature controller
AUTO
MAN
TH
PROG
:
0
C
47
EN
AURATON 2020 TX RX Plus - Installation
