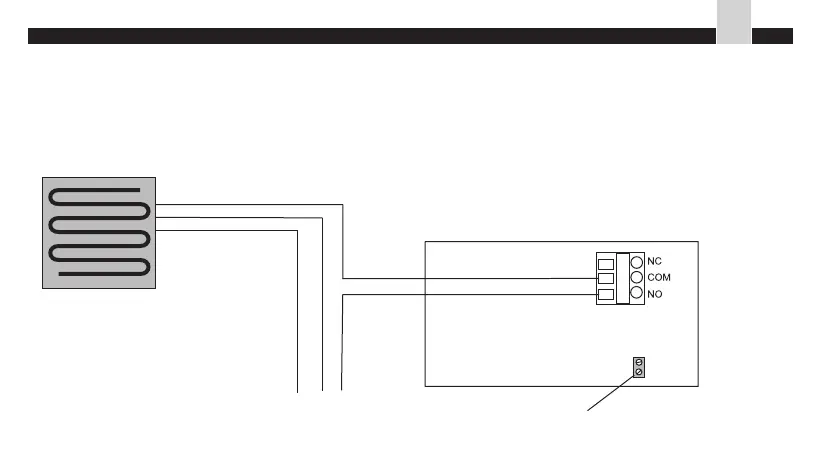

18.2 Diagram of direct connection of
| AURATON 2020 P provided with a floor
sensor
Note:
In case of the use of a controller provided with a floor
sensor (i.e. AURATON 2020 P) the following operations
should be made:
a branch box provided with a connector cube should be
installed about 30cm above the floor level;
a shield pipe should be designed and laid in the hollow
previously made in the wall and floor. The pipe should be
flushed with the mat or heating conducts (min 50 cm) and
plugged at its end. Temperature sensor should be located
inside.
~ 230V
yellow - green
protection wire
Floor mat
Location of a temperature sensor on the conduct
(the option with floor heating)
AURATON 2020 P
AURATON 2020 P - Connection diagrams
