12. Acquaintance with the
AURATON 2020 RX Plus

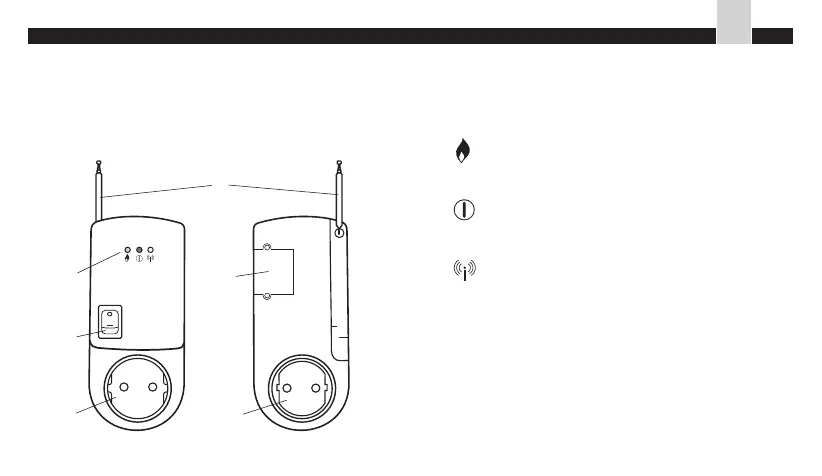

12.1 Outer view
1. An extensible antenna – for communication
with the AURATON 2020 RX Plus controller.
2. Control diodes
the green diode – informs that the
executing device (e.g. a furnace) is
operative.
the red diode – informs whether the
AURATON 2020 RX Plus controller is
supplied
the yellow diode – indicates the radio
connection with temperature controller of
AURATON 2020 RX Plus
3. The switch of the additional socket.
4. The additional socket – designed for connecting
any equipment supplied from power network.
Note: max 5A.
5. Cover of the connector
6. Supplying plug.
NC NO COM
front back
2
1
3
4
5
6
AURATON 2020 RX Plus - Acquaintance
