Austro Engine E4P - Dimension and Volume

Operation Manual
E4P
E4.01.02
Issue date: 15.Nov.2016
Page: 2-3
Revision no: 1
2.4 Dimension and Volume
For further information about measurements refer to the Installation Manual of the E4 series (Doc. No.:
E4.02.01).

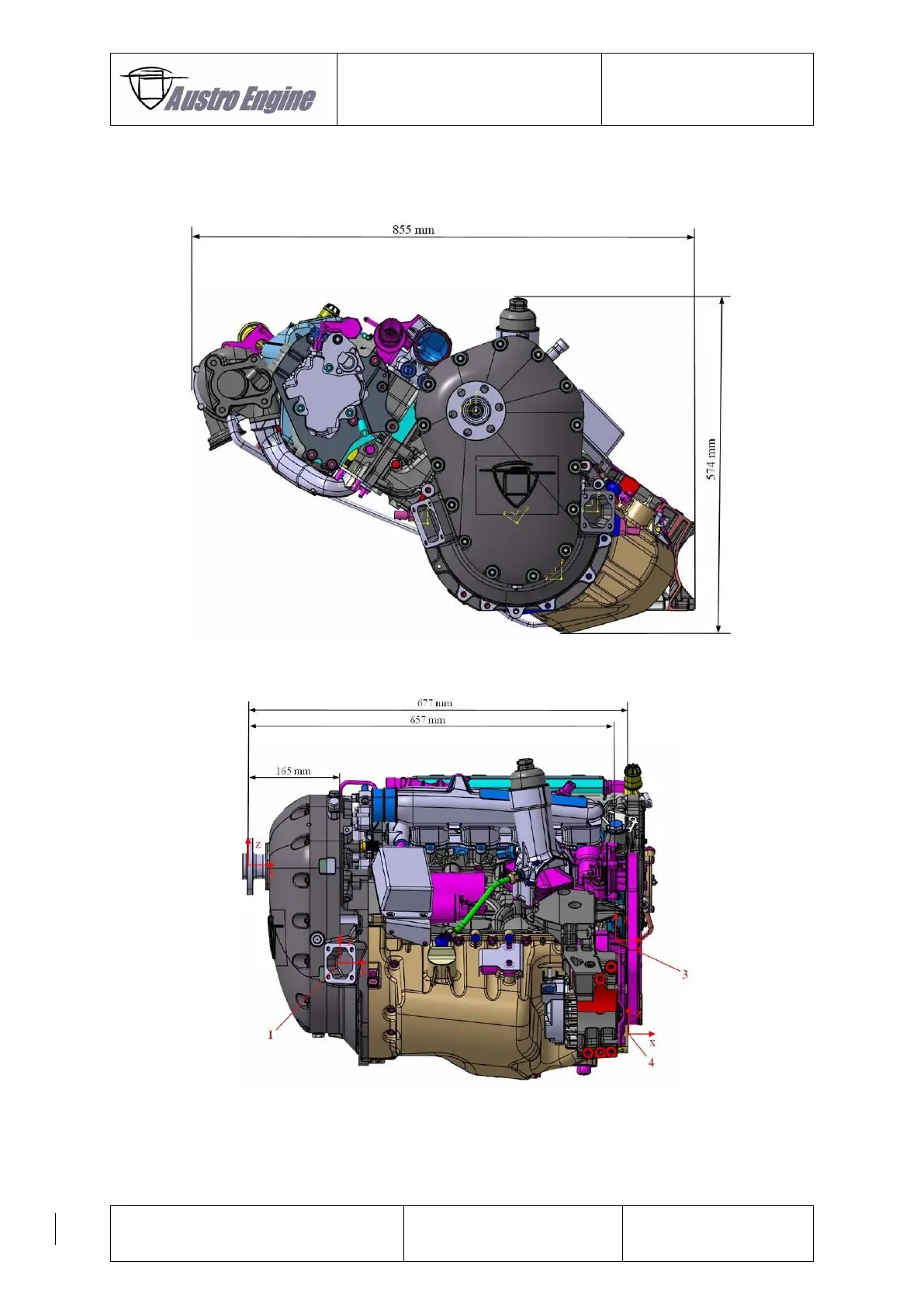

Fig. 2.1: Engine view
Fig. 2.2: Engine view
