Austro Engine E4P - 2.5.8 Engine Operating Envelope

Operation Manual
E4P
E4.01.02
Issue date: 15.Nov.2016
Page: 2-13
Revision no: 1
2.5.8 Operating Envelope

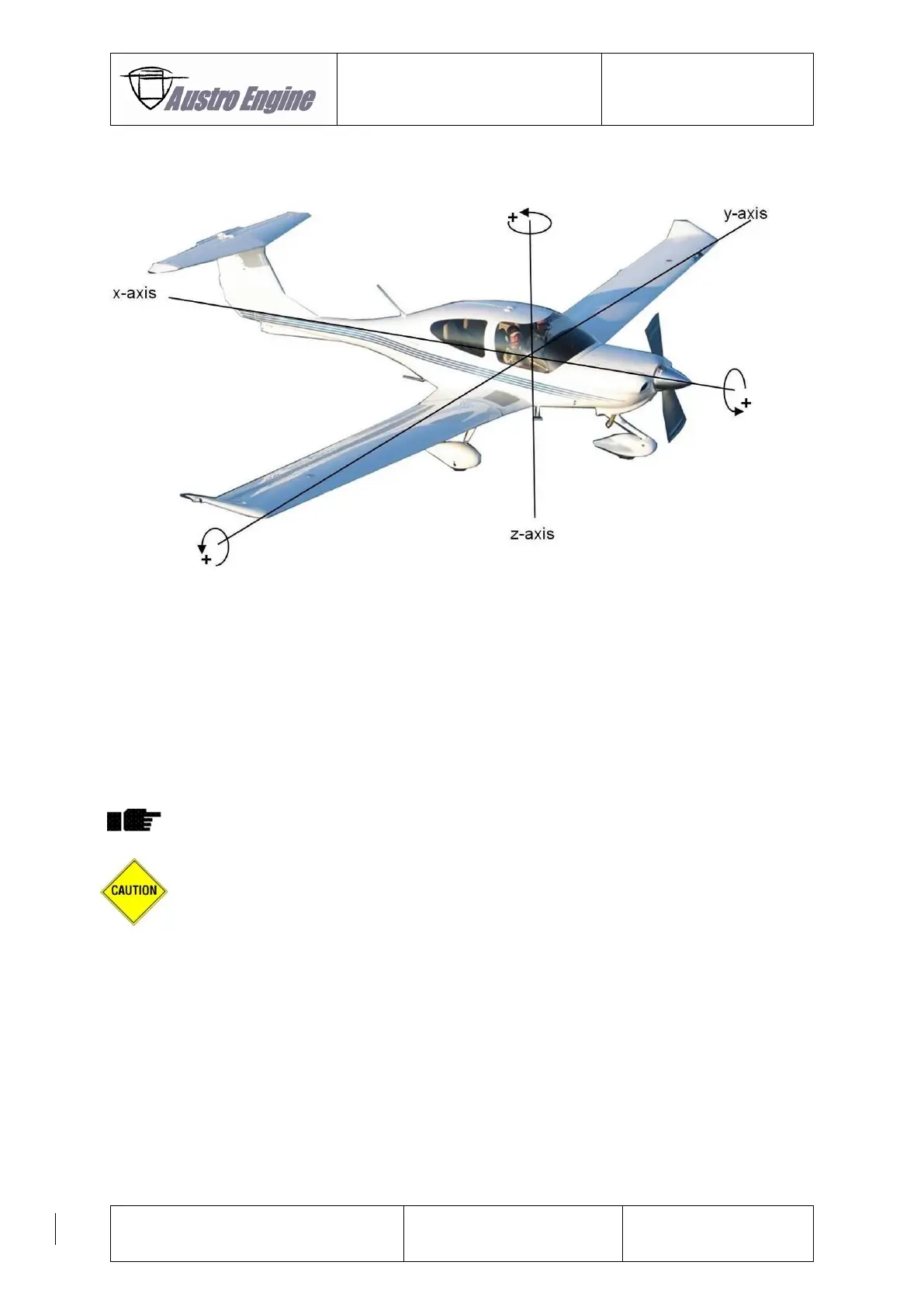

Fig. 2.8: Banking Rotation
Banking rotation deviations from the apparent perpendicular:
Around the x - axis:
max.
±15 º
Around the y - axis
max.
-35 º / + 25 º
Around the z - axis
max.
±20 º
Up to these deviations from the apparent perpendicular, proper lubrication is ensured.
Intentional negative g operation is not permitted.
Intentional negative g operation can lead to low oil pressure and subsequently to turbo
charger damage.
