9
2.1.4 Gimbal & Camera
XI-5A Camera Gimbal
The camera gimbal is engineered to minimize camera vibration and provide
superior stability, with a controllable roll axis range of 0°~90°. The operating
temperature is maintained at -10°C~50°C (14°F~122°F).

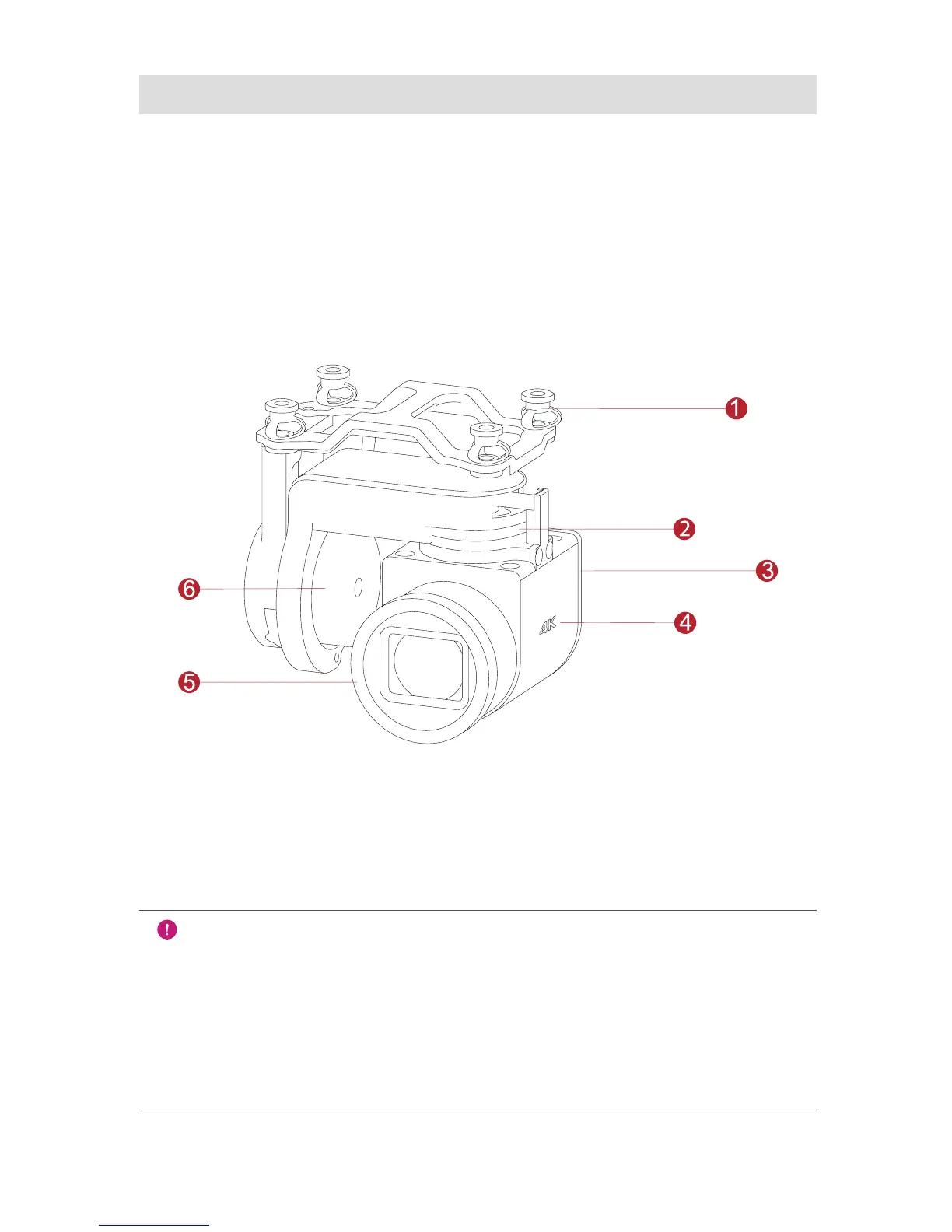

When the aircraft is powered up, the gimbal will automatically perform a calibration
test. Use the diagram below to familiarize yourself with all the moving parts of the
gimbal.
① Vibration Absorber ④ Camera
② Yaw Motor
⑤ Filter
③ Roll Motor ⑥ Pitch Motor
IMPORTANT
• The EVO XI-5A Camera Gimbal is held in place with a gimbal holder to
protect the gimbal from the incidental rotation — and to avoid damage
when stored.
• Remember to remove the holder before powering up the aircraft.
Failure to do so may result in damage to the gimbal motors and
circuitry.
