29

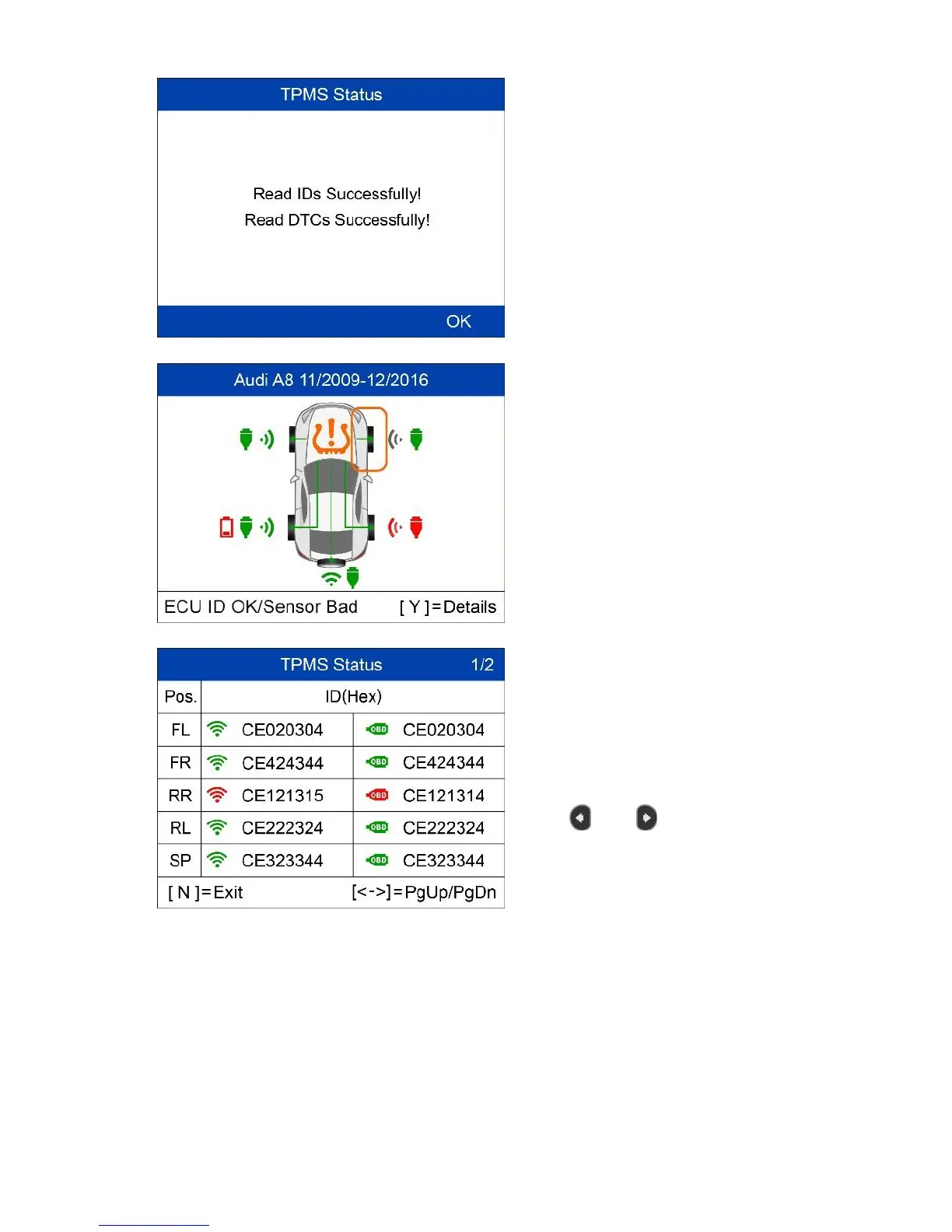

A message will display if IDs and
DTCs have been read successfully.
Green signal and OBDII icons: the
ECU ID matches Sensor ID.
Red signal and OBDII icons: the
ECU ID does not match Sensor ID.
Red battery icon: low sensor battery
Amber TPMS icon: DTC(s) present
in the ECU.
Press Y to view sensors data.
Positions, activated sensor IDs and
ECU-registered IDs display on the
screen.
Use and to view more
information.
